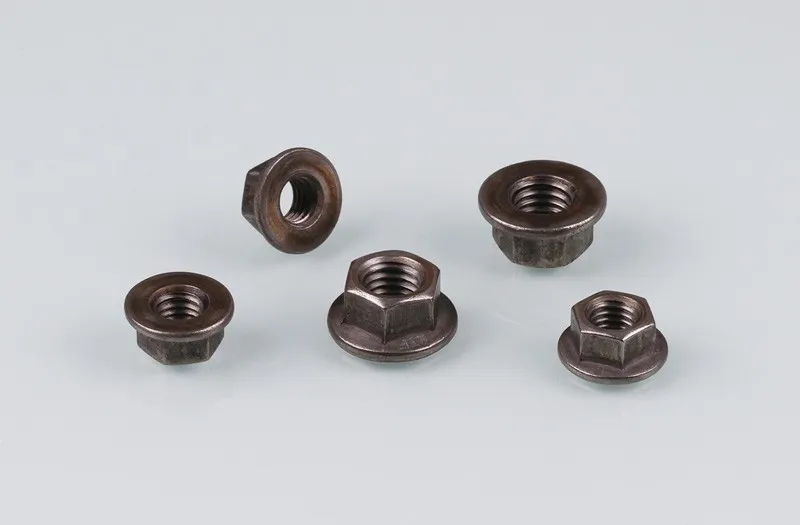

Flat Flange Nuts
Product: Flat Flange Nuts fine thread
Standard: JIS B1190
Raw material: Q195,SWRCH35K/45K,40CR,42CRMO,etc.
Surface: Plain,zinc plated,black oxide,H.D.G,etc.
Specification Range: M5-M20
Property Class:6,8,10,12
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Product: Flat Flange Nuts fine thread
Standard: JIS B1190
Raw material: Q195,SWRCH35K/45K,40CR,42CRMO,etc.
Surface: Plain,zinc plated,black oxide,H.D.G,etc.
Specification Range: M5-M20
Property Class:6,8,10,12

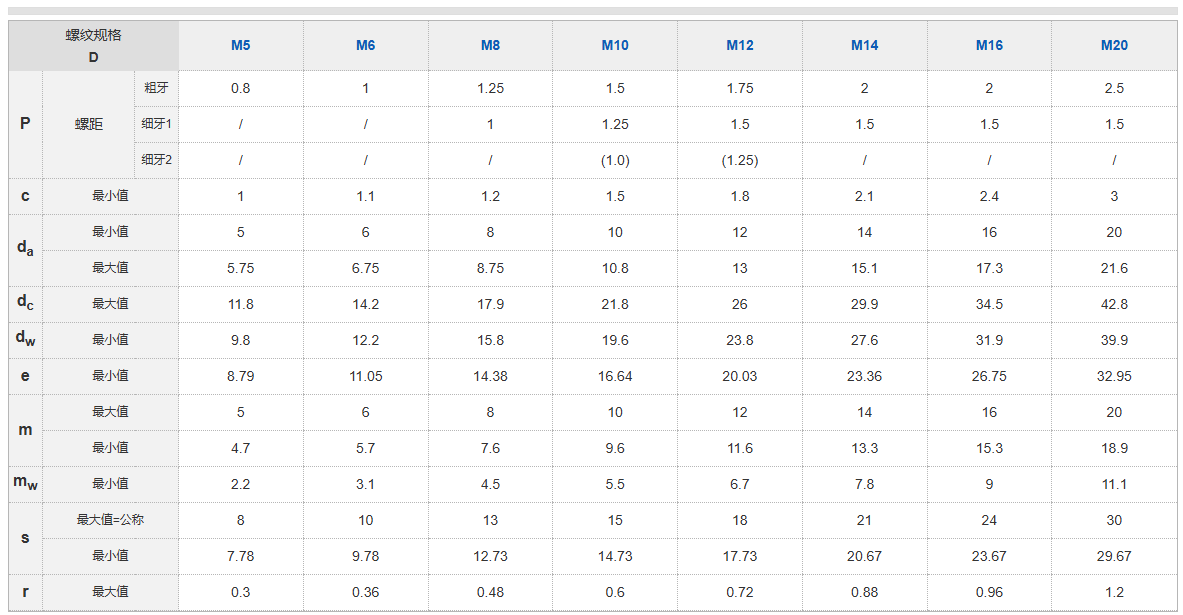

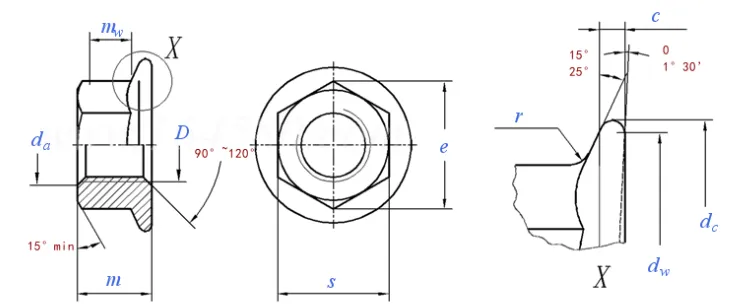

Mechanical Properties
JIS B1190 Flat Flange Nuts Product Description
JIS B 1190 is the core Japanese Industrial Standard for hexagon flange nuts, covering both fine pitch and coarse pitch threads. Fine pitch threads offer superior advantages in locking, precision adjustment, thin-wall / light-load applications.
1. Standard Overview
Standard No.: JIS B 1190:2014 (current), based on ISO 4161 and ISO 10663.
Product Name: Hexagon flange nuts (integrated flange, replaces flat washers).
Thread Types:
Coarse thread: JIS B 0205 1 (general use)
Fine thread: JIS B 0205 2 (precision / anti loosening)
Common size range: M5–M20.Fine pitch includes: M8×1.0, M10×1.25, M12×1.25 / 1.5, M14×1.5, M16×1.5, M20×1.5.
Thread tolerance: 6H (internal thread).
Reference standards: JIS B 1052 (mechanical properties), JIS B 1054 (proof load).
Structure & Function
Flange:
Enlarges bearing surface, distributes stress, prevents crushing and loosening; eliminates the need for separate washers.
Hexagonal shape:
Compatible with standard wrenches, easy installation.
Main functions:
High-strength fastening and anti loosening
Simplified assembly
Suitable for vibration and shock conditions
Fine pitch:
enhanced anti-loosening, minimal axial clearance, precise adjustment, larger thread contact area

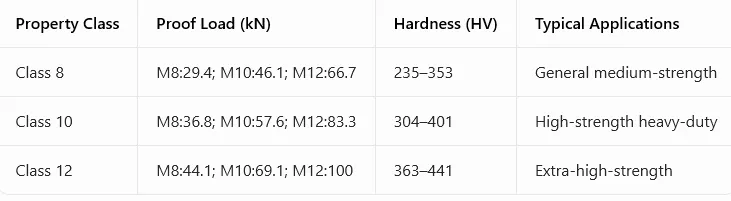

Mechanical Properties (Steel)
Selection & Usage Guidelines
Recommended fine‑pitch sizes: M8×1.0, M10×1.25, M12×1.25 / 1.5, M14–M20×1.5.
Bolt matching: Must use the same standard and pitch (e.g., JIS B 1189 flange bolts).
Anti‑loosening support: For severe vibration, use nylon insert lock nuts, all‑metal lock nuts, or thread adhesive.
Torque control: Fine‑pitch threads have larger contact area; torque should be slightly higher than coarse pitch of the same size to avoid thread stripping.
Material matching: Steel nut with steel bolt; stainless steel with stainless steel to prevent galvanic corrosion.
