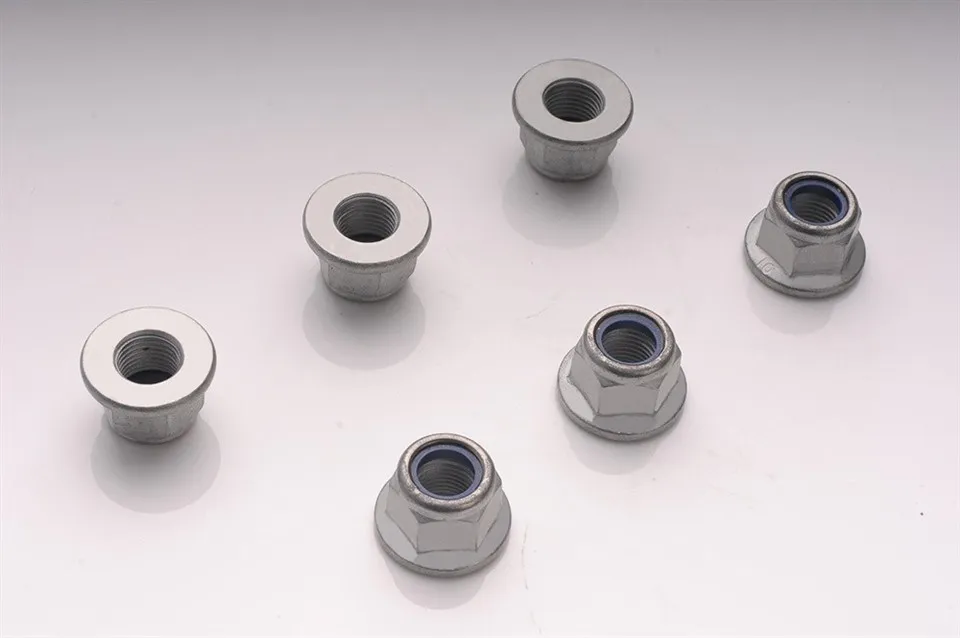

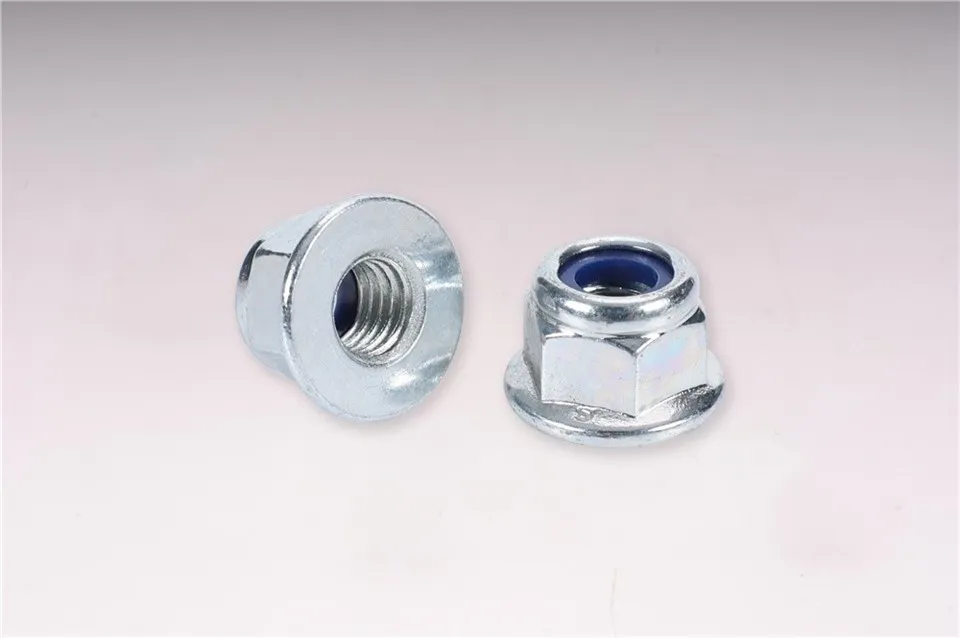

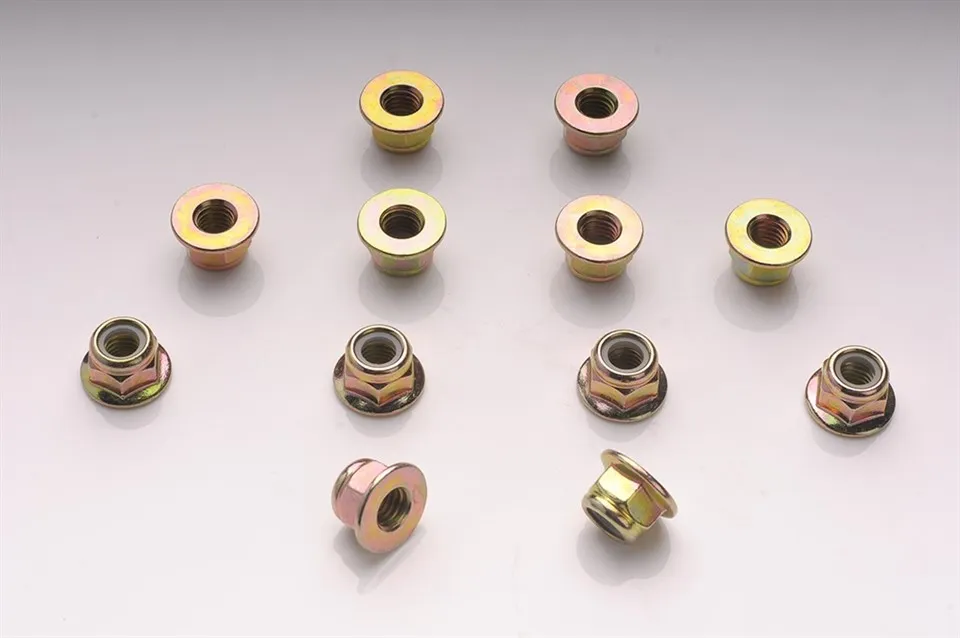

Din6926 Hexagonal Flange Lock Nuts
Product: Hexagonal Flange Lock Nuts with Non-Metallic Inserts
Standard: DIN6926
Raw material: SWRCH35K/45K,40CR,42CRMO,etc.
Surface: Plain,zinc plated,black oxide,H.D.G,etc.
Specification Range: M5-M20
Property Class:8/10/12
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Product: Hexagonal Flange Lock Nuts with Non-Metallic Inserts
Standard: DIN6926
Raw material: SWRCH35K/45K,40CR,42CRMO,etc.
Surface: Plain,zinc plated,black oxide,H.D.G,etc.
Specification Range: M5-M20
Property Class:8/10/12
DIN6926: Hexagonal Flange Lock Nuts with Non-Metallic Inserts
DIN6926 is a hexagonal flange lock nut equipped with a non-metallic insert (typically nylon). It relies on the flange surface for load-bearing and anti-rotation, while the nylon ring generates preload torque to prevent loosening, eliminating the need for additional washers. It is widely used in vibration-prone working conditions.
Production Standards
• Main Standard: DIN 6926 (current version: DIN EN ISO 1993). Nominal diameter range: M5–M20; product grade: A; flanges available with serration or without serration versions.
• Supporting Standards: DIN EN ISO 898-2 (for steel), DIN EN ISO 3506-2 (for stainless steel), DIN 267-1/15. These cover general requirements, mechanical properties, and thread tolerance (6H).
• Equivalent/Alternative Standards: ISO 7043, GB/T 6183.1/6183.2, ASTM A563 (for partial specifications). Consistent in dimensions and anti-loosening principle, enabling seamless interchangeability.
Performance Grades and Mechanical Properties
1. Performance Grades
• Carbon Steel: Grades 8, 10, 12 (for sizes ≤M16); thread tolerance: 6H.
• Stainless Steel: A2-70, A4-70/A4-80, in compliance with DIN EN ISO 3506-2
2. Performance Grades
• Carbon Steel: Grades 8, 10, 12 (for sizes ≤M16); thread tolerance: 6H.
• Stainless Steel: A2-70, A4-70/A4-80, in compliance with DIN EN ISO 3506-2.

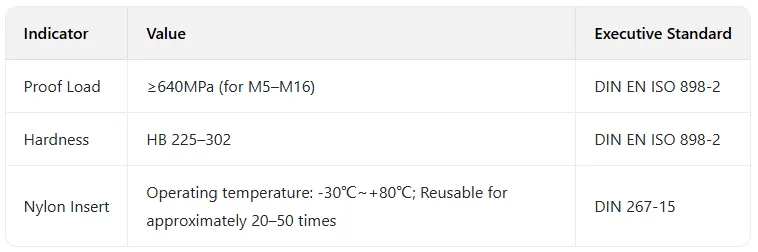

Typical Mechanical Properties (Carbon Steel Grade 8)
Production Process
Material Selection:
Carbon steel (e.g., SWRCH35K), stainless steel (304/316), and nylon 66 inserts, selected based on performance grades.
Forming:
Cold heading (for M5–M16) to produce hexagonal flange blanks, ensuring metal flow lines and mechanical strength; hot forging is applicable for large-sized products.
Insert Assembly:
Nylon rings are installed via injection molding or press-fitting, ensuring the inner diameter of the ring is smaller than the thread pitch diameter to generate preload torque.
Tapping:
Processing of 6H threads, ensuring compliance with thread go-no-go gauge requirements.
Surface Treatment:
Zinc plating with colored passivation, dacromet coating, black oxide coating, etc., to enhance corrosion resistance.
Inspection:
Full-dimensional inspection, thread go-no-go gauge testing, proof load testing, hardness testing, and surface salt spray testing (≥48 hours).
Main Application Fields：Automotive manufacturing, construction machinery, general machinery, electronics and home appliances.
Main Sales Markets Europe, the Middle East, Southeast Asia.
Packaging and Logistics
• Main Packaging Materials: Small bags, small boxes, cartons, pallets, and iron drums.
• Customized packaging is available upon customer request.
•Flexible bulk ordering options are provided; shipping terms and delivery schedules are negotiable.
Certifications and Guarantees
• We are certified by ISO9001:2015, IATF16949:2016, and other international quality standard certifications.
• Long-term quality assurance and comprehensive after-sales service are offered.
Main Sales Markets of the Product: Europe, the Middle East and Southeast Asia
Packaging and Logistics
- Main packaging materials include: small bags, small boxes, cartons, pallets and iron drums.
- Customized packaging is available according to customer requirements.
- Flexible bulk ordering plans are provided, and both transportation terms and delivery schedules are negotiable.
Certification and Warranty
• We are certified by ISO9001:2015, IATF16949:2016, and other international quality standard certifications.
• Long-term quality assurance and comprehensive after-sales service are offered.
Established in 2005, our company has evolved over two decades of continuous development into a leading regional enterprise in the fastener industry with fully automated end-to-end production. With an annual output value exceeding RMB 130 million, our product range covers diverse market segments from mid-range to high-end and is distributed worldwide

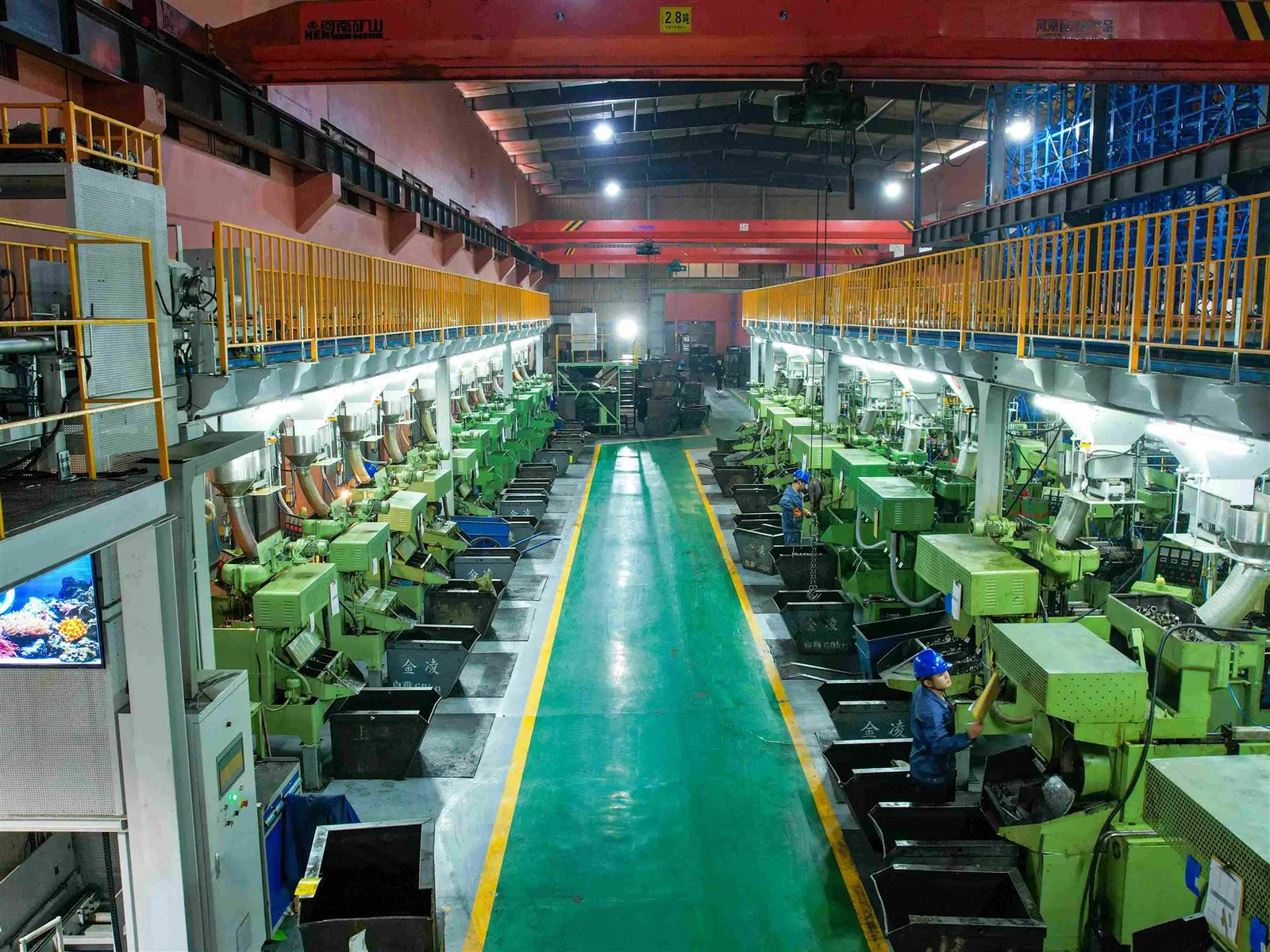

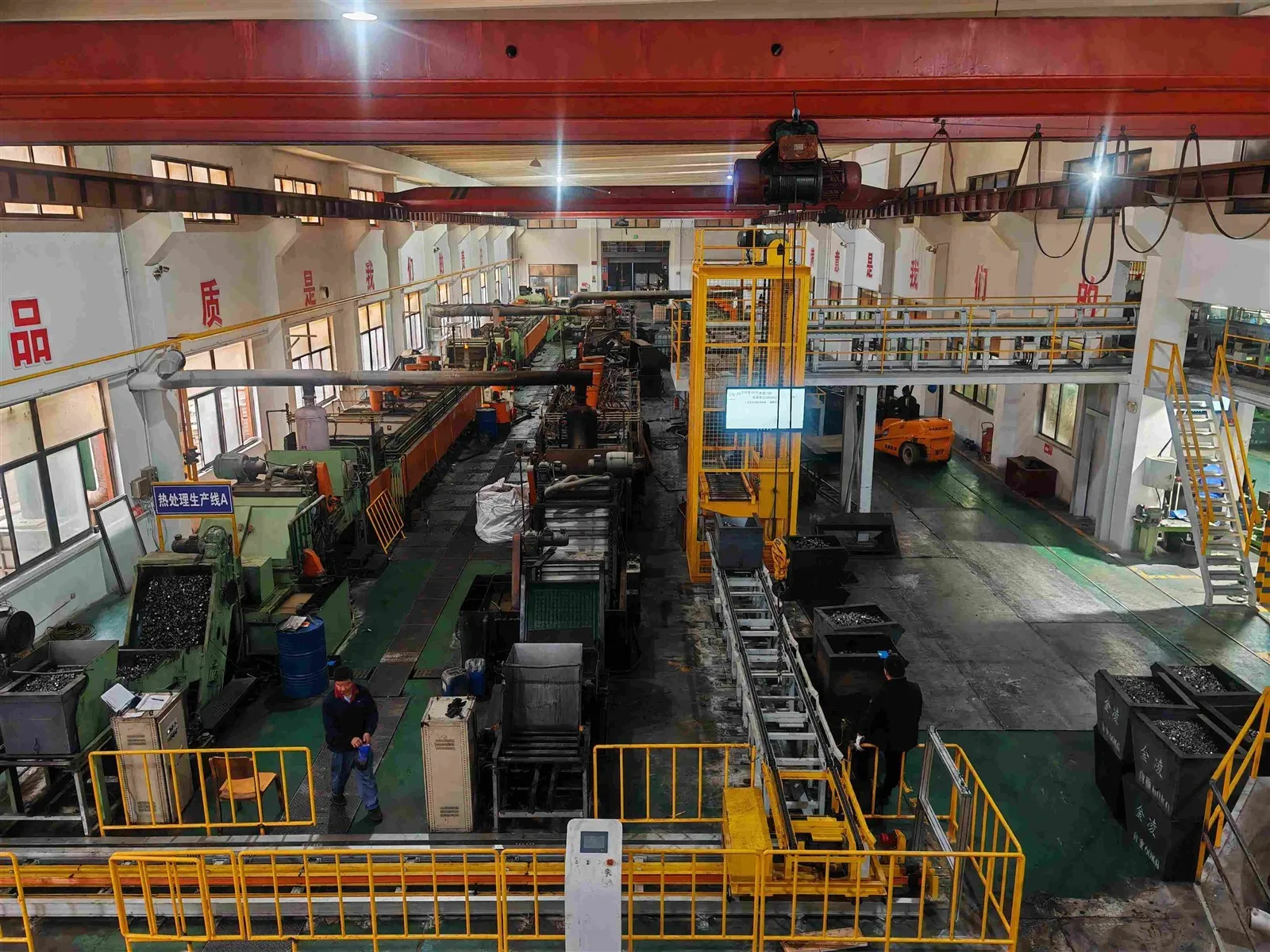

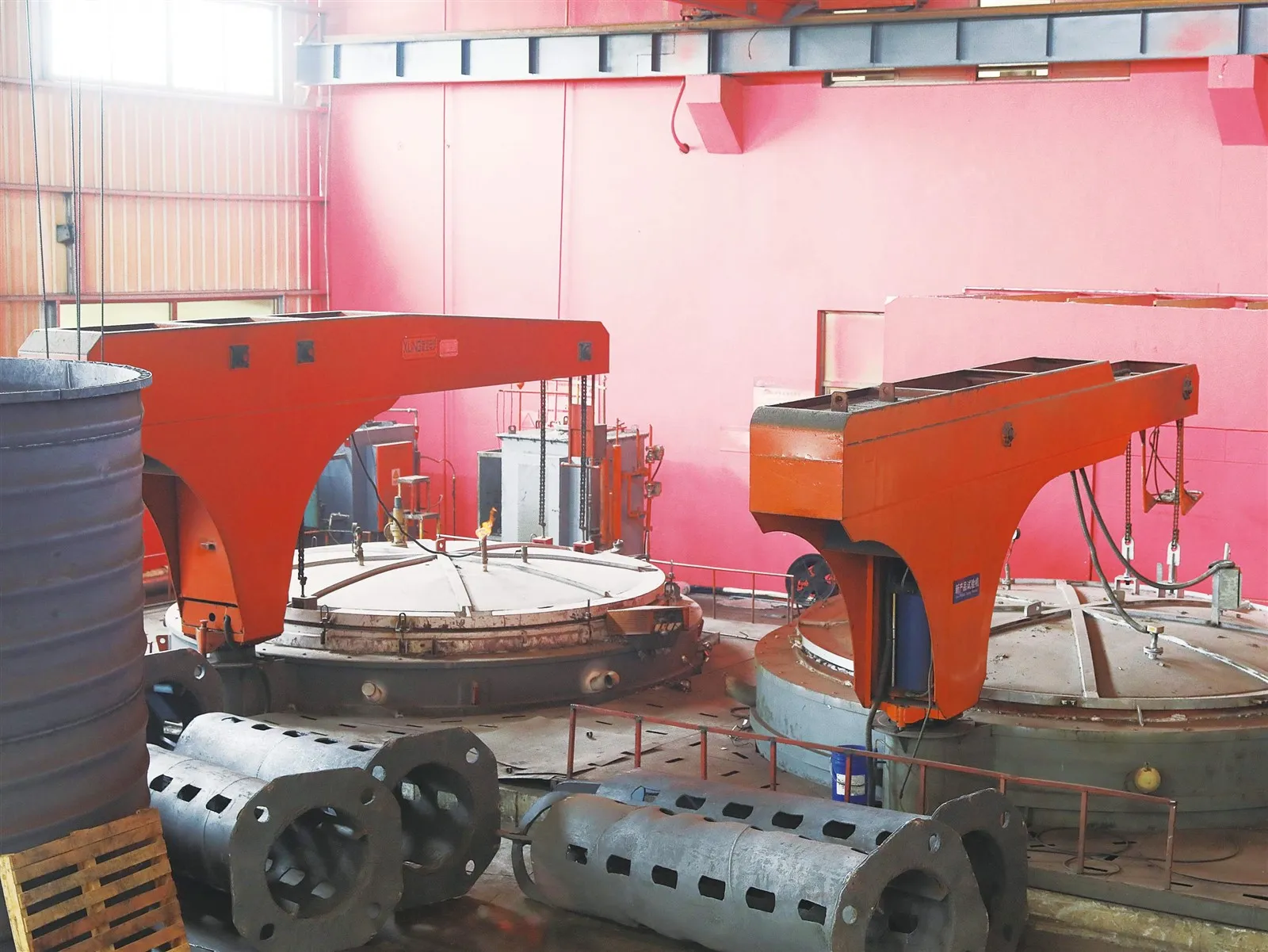

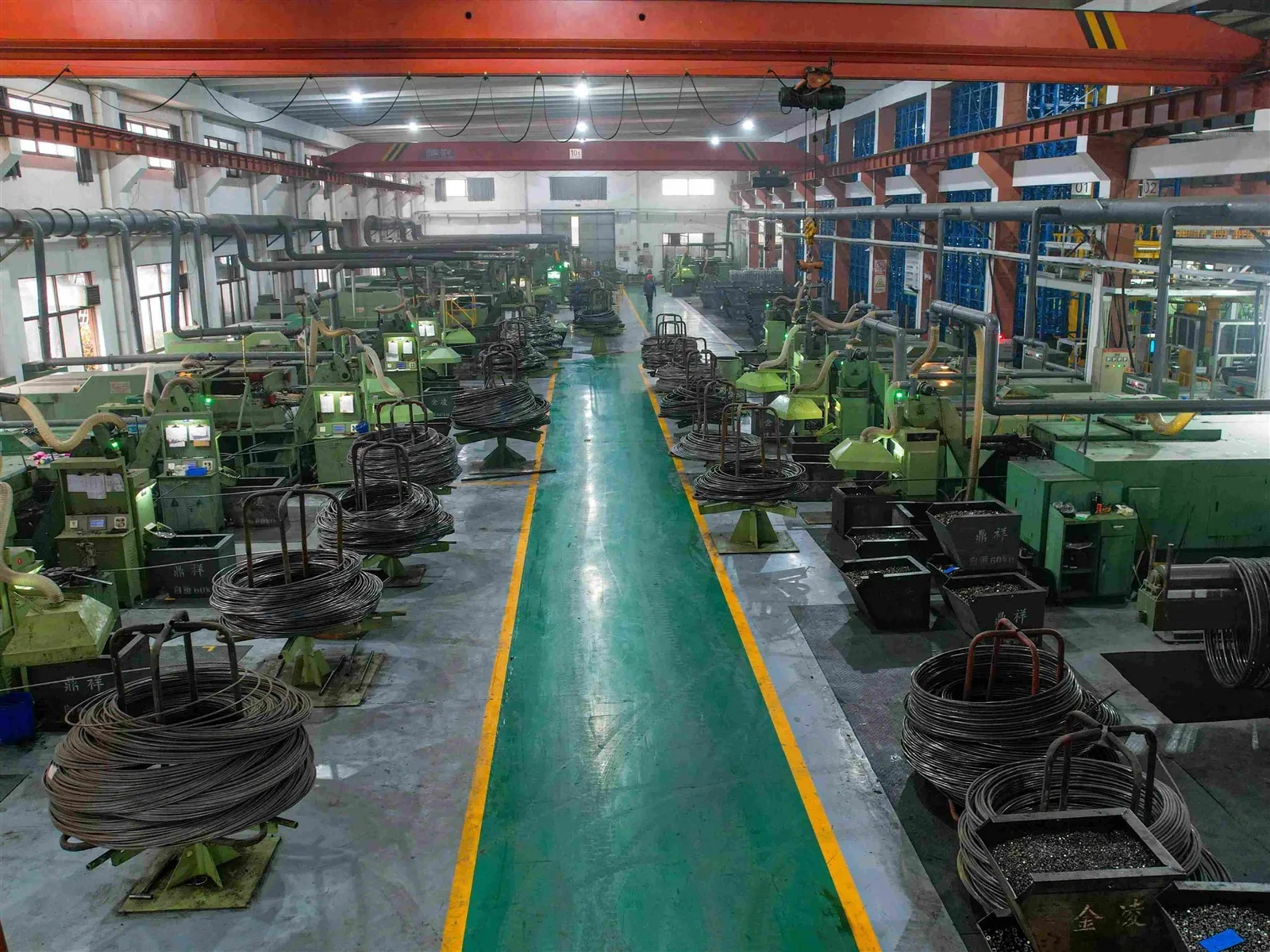

Our factory & quipment
