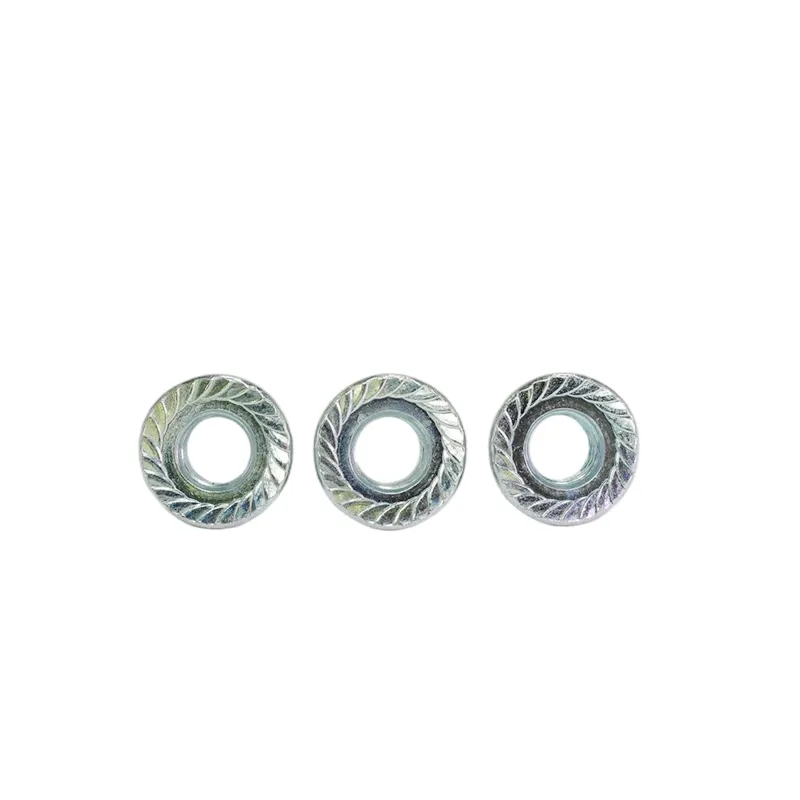

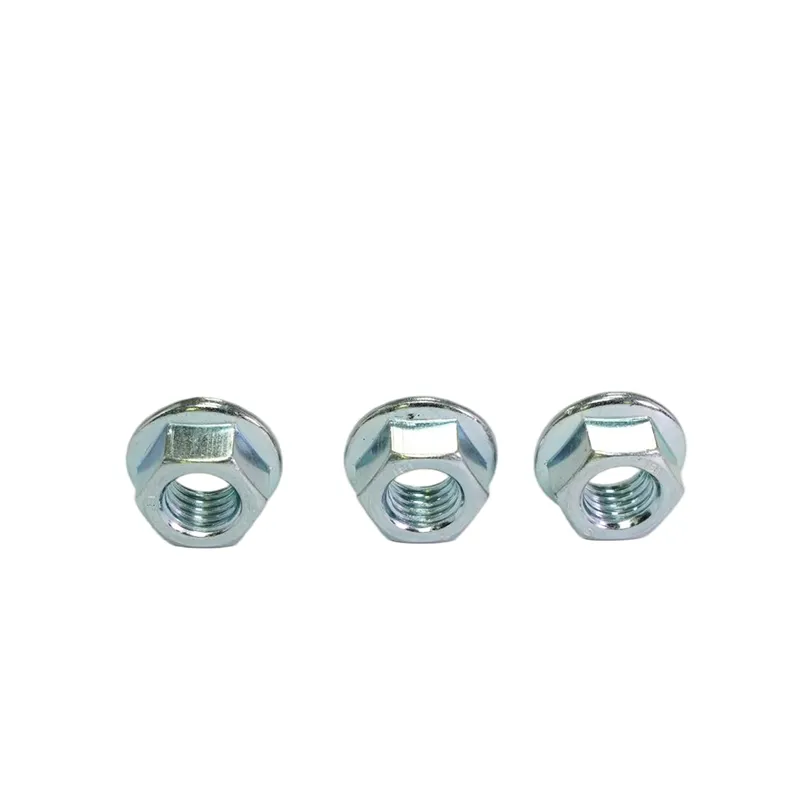

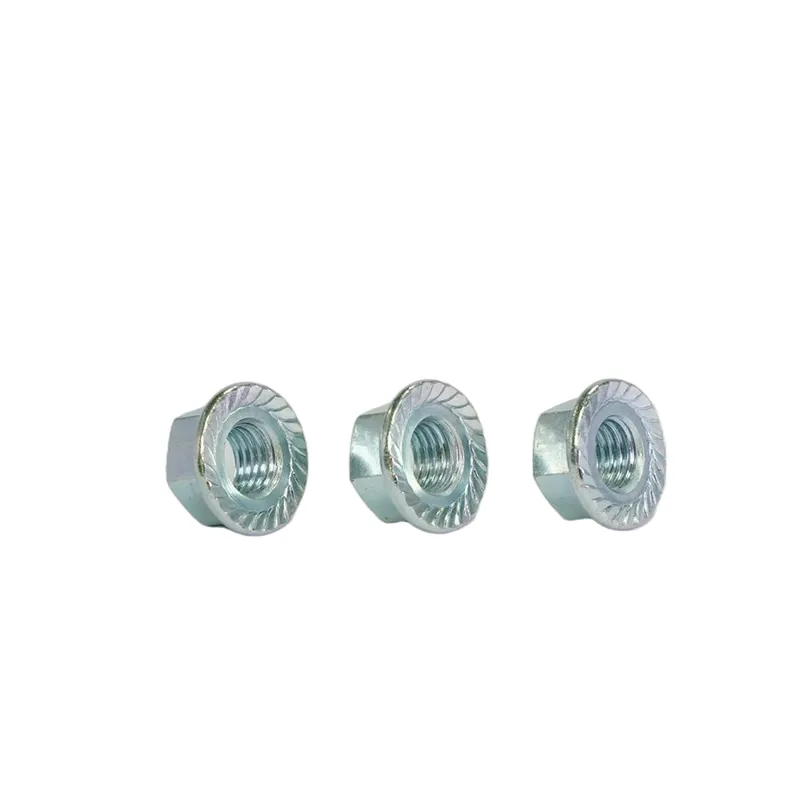

Serrated Hex Flange Nuts
Product: serrated hex flange nuts
Standard: DIN6923
Material: ZT195,08AL,SWRCH35K/45K etc.
Surface: Plain,zinc plated,black oxide,H.D.G,etc.
Specification Range: M5-M20
Property Class:6,8,10
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Product: serrated hex flange nuts
Standard: DIN6923
Material: ZT195,08AL,SWRCH35K/45K etc.
Surface: Plain,zinc plated,black oxide,H.D.G,etc.
Specification Range: M5-M20
Property Class:6,8,10

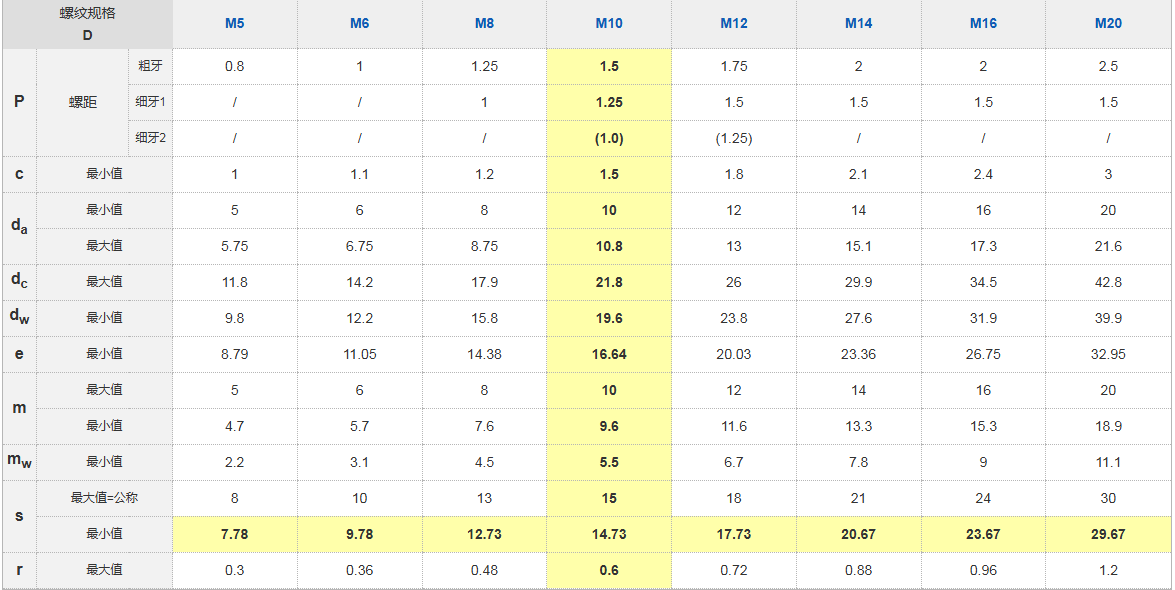

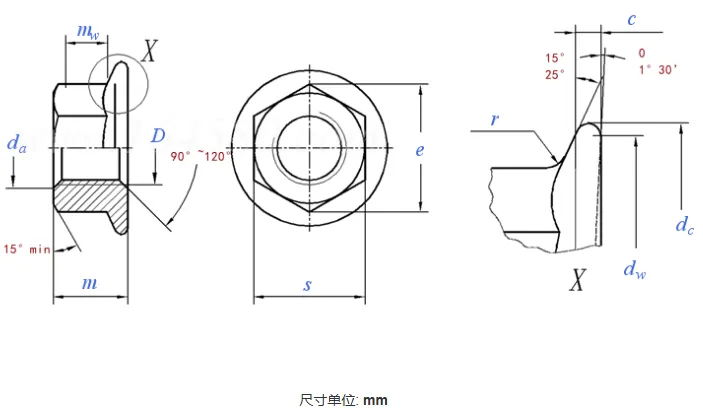

Mechanical Properties
Core Functions
Load Distribution:
The flange face replaces a flat washer, increasing contact area and reducing surface pressure to protect surfaces of connected parts.
Mechanical Locking:
The toothed flange face embeds into the substrate upon tightening, resisting loosening from vibration/impact via friction.
Simplified assembly:
Integrated nut washer design eliminates the need for additional flat washers, improving assembly efficiency.
Positioning & Anti-rotation:
The flange face aids in positioning, reducing assembly alignment.
Core Features
Integrated Structure:
Hex flange in one piece, available in two types: toothed (strong locking) and smooth (protects soft/coat surfaces).
01
Stronger Load Bearing:
30% larger support area than standard hex nuts, suitable for heavy loads and thin/soft material connections. Reliable Locked surface engagement forms a mechanical lock, offering superior vibration resistance compared to standard nuts.
02
Materials & Grades:
Carbon steel (Grade 8/10/12), Stainless steel (A2-70/A4-80), suitable for general and corrosive environments.
03
Specifications:
Metric coarse/fine thread, common sizes M5–4, Class A (≤M16), Class B (>M16).
04
Efficient Assembly:
Washer-free, single-step tightening, suitable for automated production lines.
05
Major Industry Application Scenarios
Automotive Manufacturing:
Chassis, suspension, engine, transmission, braking systems (high vibration heavy load). Construction Machinery: Excavators, cranes, loaders, hydraulic equipment heavy load frequent vibration).
Rail Transit:
Bogies, car bodies, track fasteners (long-term dynamic loads).
General Machinery:
Pumps, valves, gearboxes, machine tools, motors, fans (structural fastening locking).
Sheet Metal / Thin Plate Connection:
Cabinets, enclosures, elevators, home appliances (prevents indentation locking).
Outdoor / infrastructure:
Photovoltaic brackets, bridge railings, wind power equipment (weather-resistant wind vibration resistance).
Electronics / Home Appliances:
Enclosures, motors, compressors (compact space + anti-loosening).
Established in 2005, our company has evolved over two decades of continuous development into a leading regional enterprise in the fastener industry with fully automated end-to-end production. With an annual output value exceeding RMB 130 million, our product range covers diverse market segments from mid-range to high-end and is distributed worldwide
