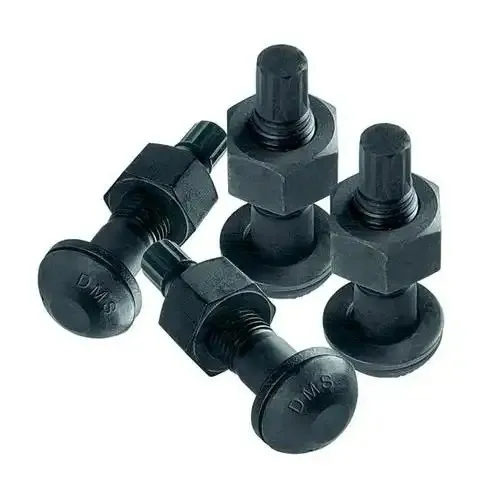

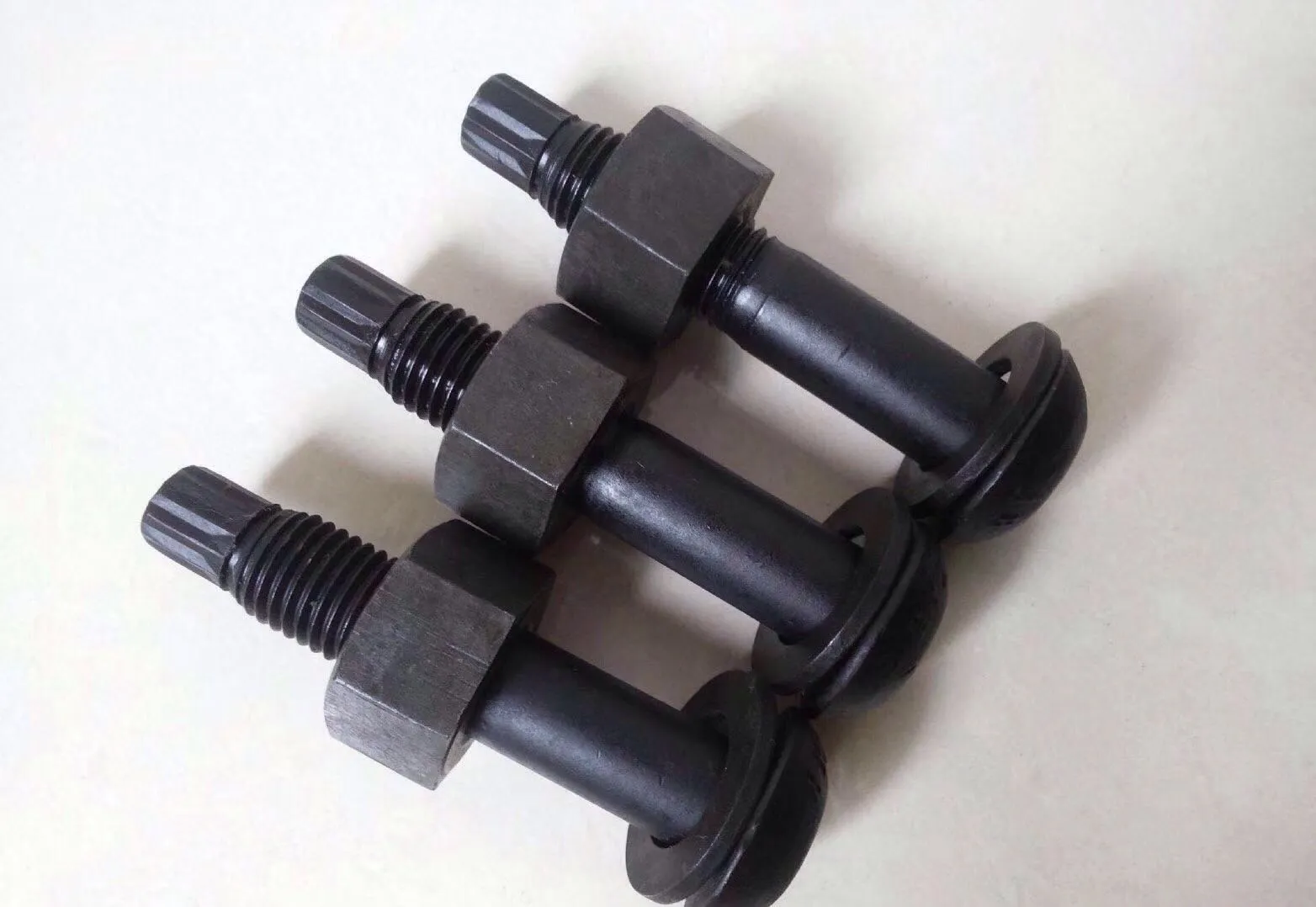

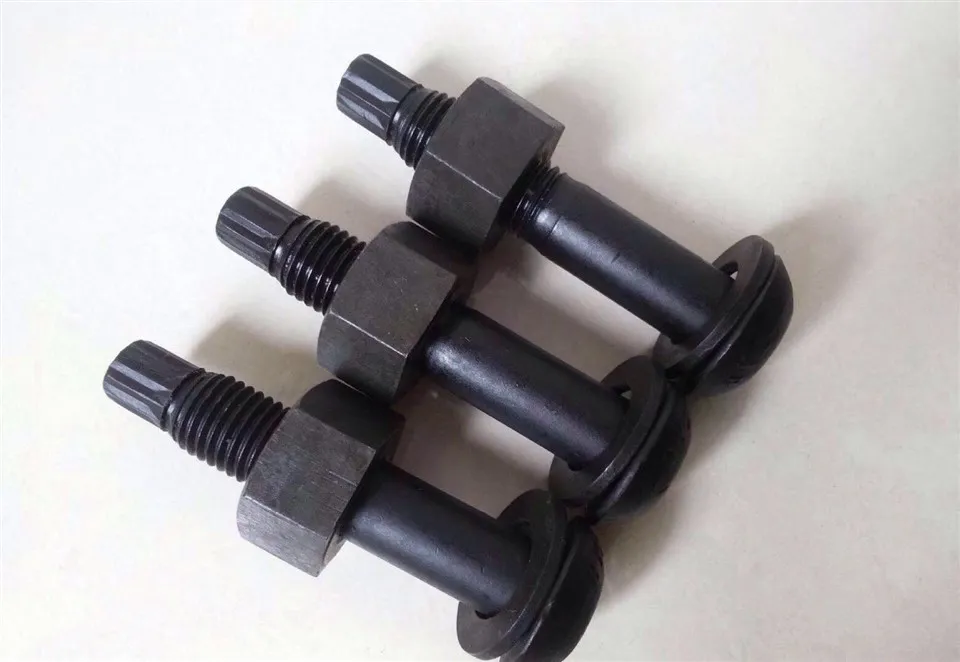

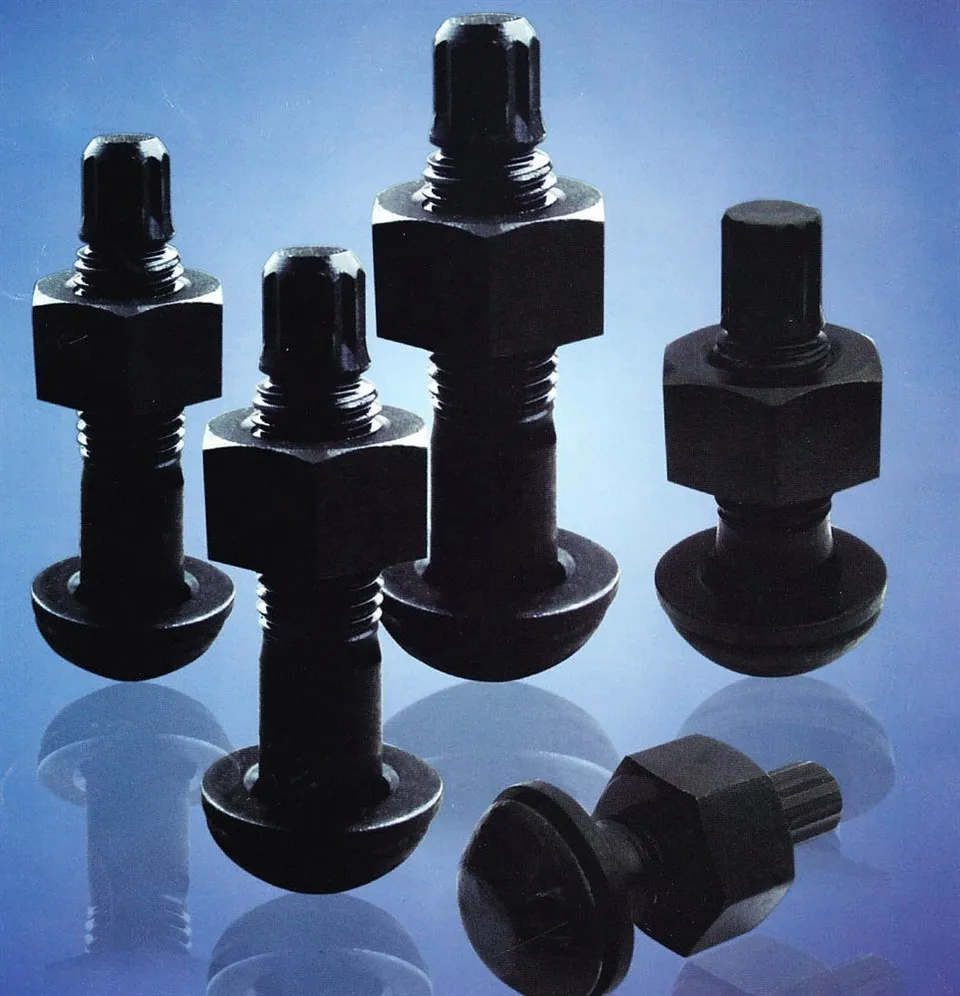

F1852f2280 Twist Off Type Tension Control Bolts







F1852/F2280 twist off type tension control bolts are high-precision, high-strength structural fasteners engineered for steel structure connections in line with American standard ASTM F1852/F2280. As an upgraded version of conventional heavy hex bolts, these tension control bolts integrate a bolt shank, tension control spline, and twist-off fracture groove, enabling torque-controlled automatic tensioning during installation. They are core fasteners for modern steel structure engineering, delivering precise preload, consistent clamping force, and exceptional connection reliability for critical structural nodes in construction, bridge, and heavy machinery projects.





Category	Details
Raw Materials	10B33, 40Cr, 35CrMo, 42CrMo and other high-toughness alloy structural steels with excellent fatigue resistance
Surface Treatments	Plain, zinc plating, black oxide, hot-dip galvanizing (H.D.G), Teflon coating, Geomet coating, Dacromet, phosphating, etc.

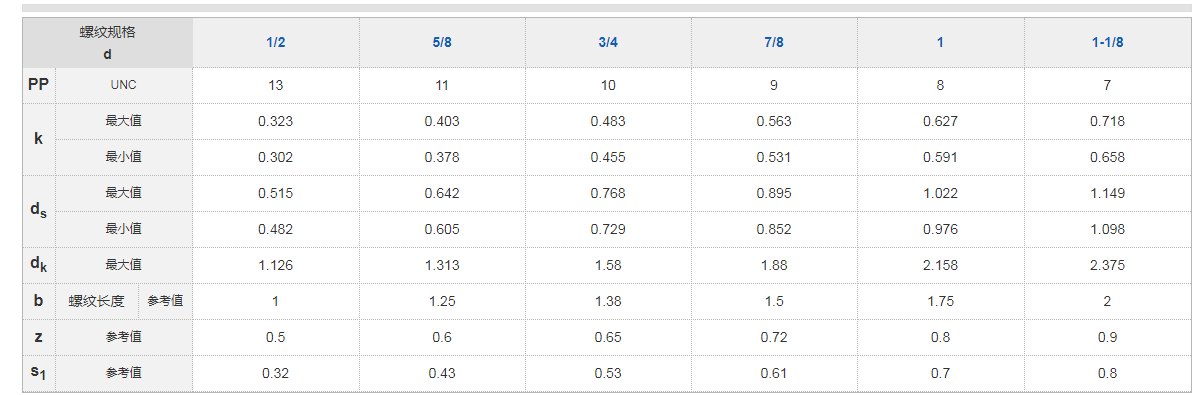

Specification Range	DIA 1/2"–1 1/8"
Property Classes	F1852, F2280

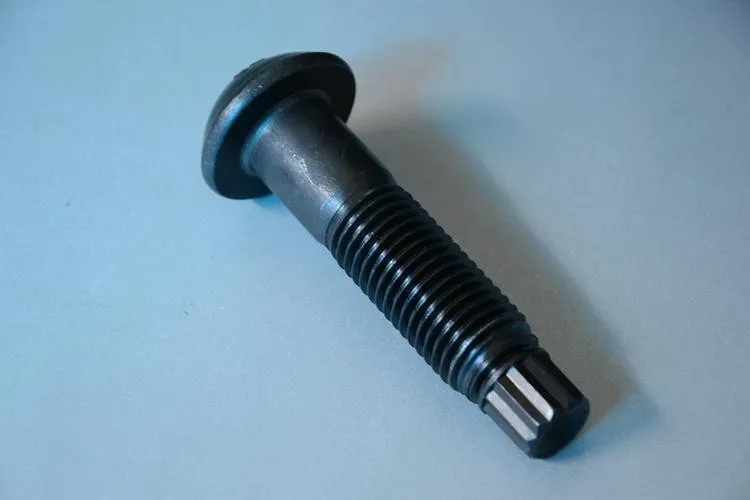

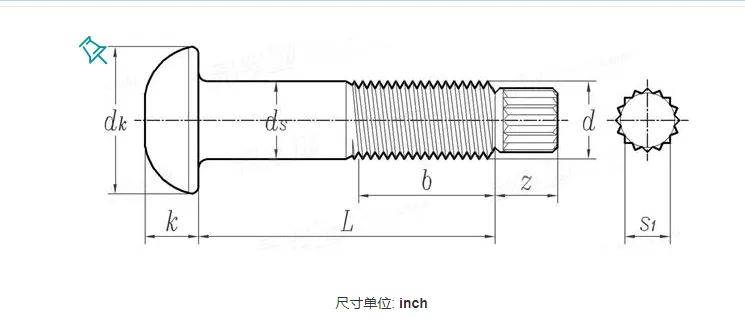

Structural Features	Integrated bolt head, shank, precision spline drive, and calibrated twist-off fracture groove; partial thread design (standard for structural bolts)







Characteristic	F1852	F2280
Strength Grade Equivalence	ISO 8.8	ISO 10.9
Minimum Tensile Strength	830 MPa (M≤16) / 860 MPa (M>16)	1040 MPa (M≤16) / 1070 MPa (M>16)
Minimum Yield Strength	620 MPa (M≤16) / 655 MPa (M>16)	830 MPa (M≤16) / 860 MPa (M>16)
Hardness Range	22–32 HRC	32–39 HRC
Fracture Groove Torque Accuracy	±5% of designed preload torque	±3% of designed preload torque
Minimum Shear Strength	≥600 MPa	≥800 MPa







Installation

Use dedicated tension control wrenches for installation; the wrench's drive head must match the bolt's spline size to avoid spline damage.

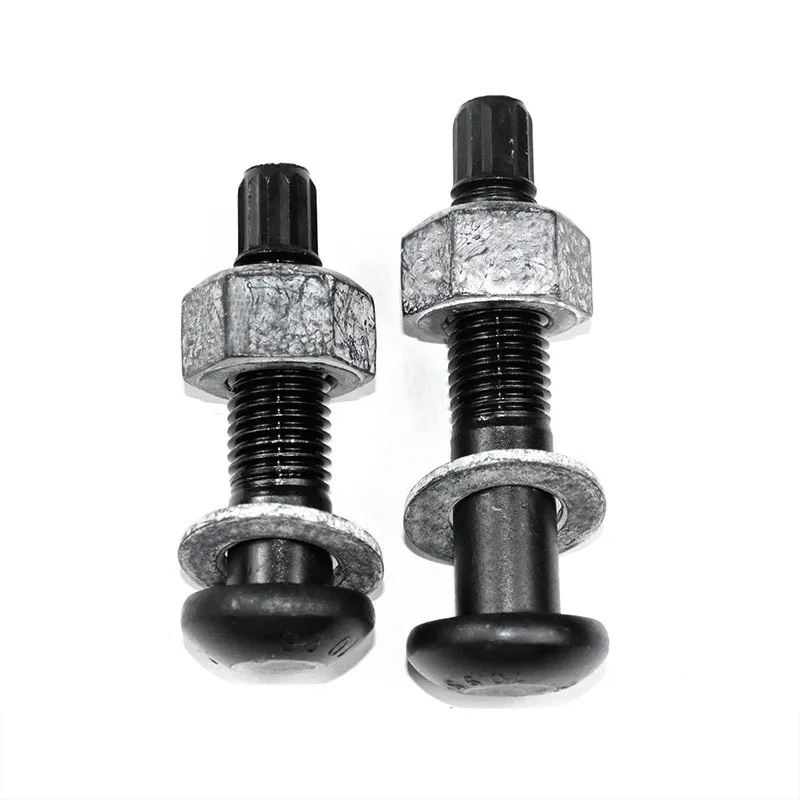

Install with matching F1852/F2280 heavy hex nuts and high-strength flat washers (washer face towards the bolt head); ensure the bolt is fully seated and the thread is not cross-threaded.

Tighten the wrench until the spline drive twists off cleanly at the fracture groove – no additional torque is required, and incomplete fracture indicates installation failure (replace the bolt immediately).

Conduct 100% visual inspection of installed bolts; confirm the spline is fractured and the fracture surface is flat.







• Conduct regular visual inspections of bolt connections; check for corrosion, loosening, or damage to the bolt head/fracture surface.
• For critical structural nodes, perform periodic preload testing with professional equipment; replace bolts immediately if preload loss or material fatigue is detected.
• Do not perform any secondary processing (grinding, welding, drilling) on the bolts after installation, as this will damage their mechanical properties.







North America, the European Union, the Middle East, Southeast Asia, Australia, and other regions with high standards for steel structure installation precision and American ASTM fastener compliance.





Packaging Options

Small packaging: Sealed plastic bags (with anti-rust oil) + cardboard small boxes (marked with specification/grade/quantity).

• Bulk packaging: Corrugated cartons + wooden pallets, iron drums (for high-corrosion protection requirements).
• Customized packaging: Labeled packaging with project numbers, anti-rust vacuum packaging, and fixed-quantity packaging for on-site construction efficiency.All packaging is designed to prevent bolt thread/spline damage and corrosion during transportation and storage.

Order Flexibility

• Support bulk and project-based customized ordering; flexible MOQ (minimum order quantity) for small-batch project needs.
• Negotiable transportation terms (FOB, CIF, EXW, DDP) and delivery schedules to align with customer construction project timelines.
• Provide door-to-door delivery service for large-scale engineering projects to ensure on-site material supply.

Certification and Quality Assurance

• Our F1852/F2280 tension control bolts are certified to international quality management system standards: ISO9001:2015 and IATF16949:2016, and fully comply with ASTM F1852/F2280 standard requirements.
• All products undergo 100% factory testing: tensile strength, yield strength, hardness, fracture groove torque accuracy, and thread precision testing; provide a complete quality inspection report for each batch.
• We offer long-term product quality guarantees and comprehensive after-sales technical services, including pre-sales installation scheme design, in-sales on-site technical guidance, and after-sales quality tracking throughout the project lifecycle.
• Provide customized non-standard tension control bolt solutions for special steel structure engineering requirements (e.g., extended shank, special surface treatment).





The core distinctions lie in installation method, preload precision, structural design, and construction efficiency, with supplementary differences in application scenarios and cost:



Installation Method & Preload Precision

• A325/A490 Heavy Hex Bolts: Require manual torque wrenches for two-stage tightening; preload accuracy depends on operator skill and wrench calibration (error rate ±15%–20%).
• F1852/F2280 Tension Control Bolts: Use dedicated automatic wrenches; preload is calibrated via the fracture groove, with an error rate of only ±3%–5%. No manual torque measurement is needed, and the spline twist-off ensures consistent preload for all bolts.

• Structural Design

• A325/A490: Conventional heavy hex head, no spline drive or fracture groove; partial thread design, simple structure.
• F1852/F2280: Integrated heavy hex head, precision spline drive, and calibrated fracture groove; the spline and fracture groove are machined with high precision to match the dedicated wrench and preload requirements.
•

Construction Efficiency

• A325/A490: Slow installation speed due to two-stage manual torque tightening and post-installation torque inspection; high labor cost and low efficiency for large-scale projects.
• F1852/F2280: One-step automatic tightening – the wrench stops working once the spline twists off; no post-installation torque inspection is required (100% visual inspection is sufficient). Installation speed is 3–5 times faster than conventional bolts, significantly reducing labor costs for large steel structure projects.



Application Scenarios

• A325/A490: Suitable for general steel structure projects with low requirements for installation speed and preload consistency.
• F1852/F2280: Exclusively designed for large-scale, high-precision steel structure engineering (e.g., super high-rises, long-span bridges) that demands consistent preload, high installation efficiency, and strict quality control.



Cost & Matching Requirements

• A325/A490: Lower unit cost; matched with standard heavy hex nuts (no exclusive matching requirement).
• F1852/F2280: Slightly higher unit cost (due to high-precision machining); strict exclusive matching – F1852 with F1852 nuts, F2280 with F2280 nuts (mismatching causes preload inaccuracy and structural risk).

In summary, F1852/F2280 tension control bolts are the high-precision, high-efficiency upgrade of A325/A490 heavy hex bolts, designed for modern large-scale steel structure engineering that values installation precision, construction efficiency, and long-term structural stability. While the unit cost is slightly higher, they save significant labor and quality inspection costs for large projects, and their superior preload consistency ensures higher structural safety.
