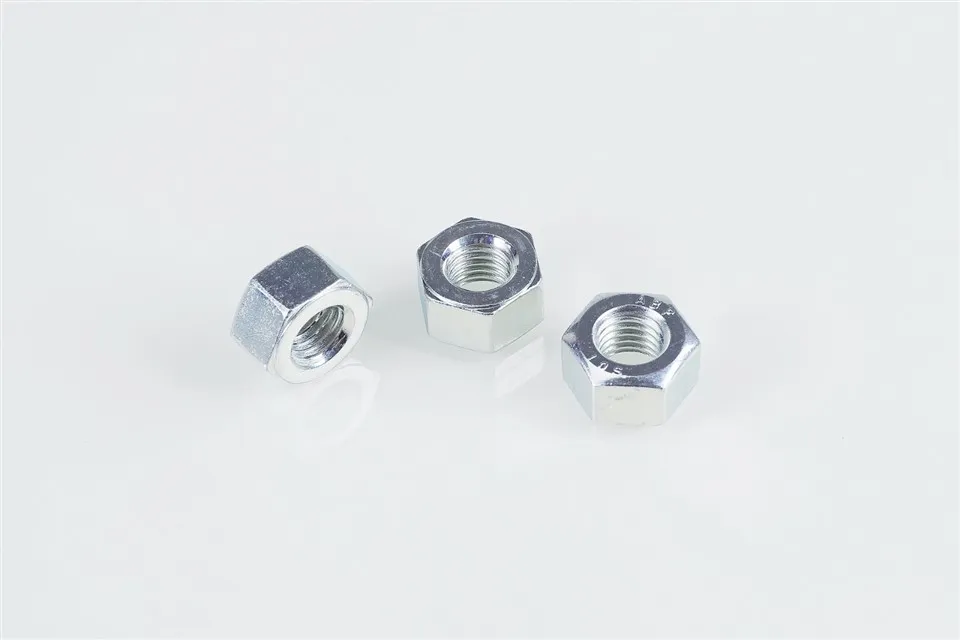

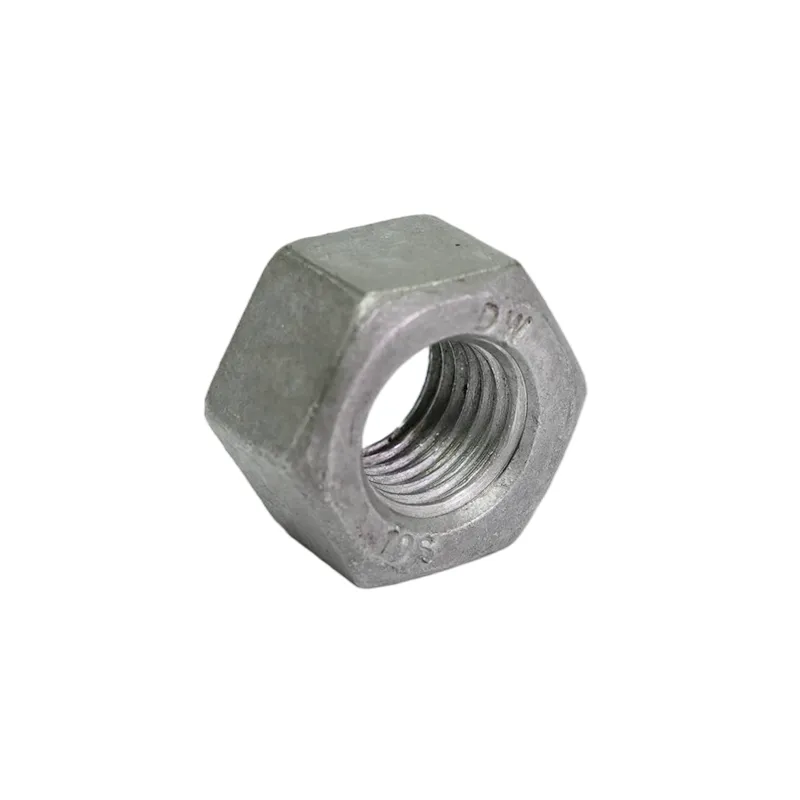

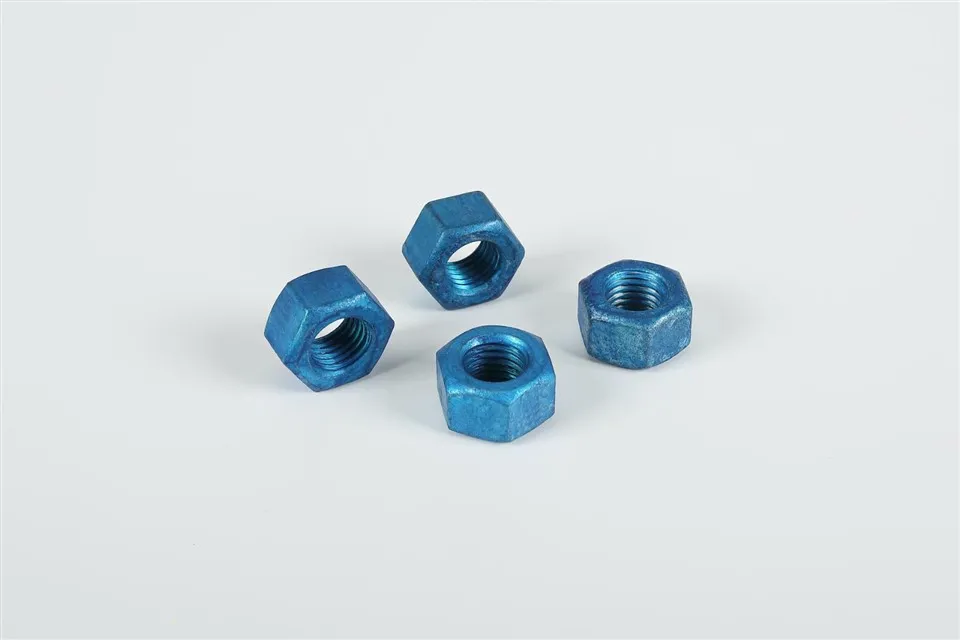

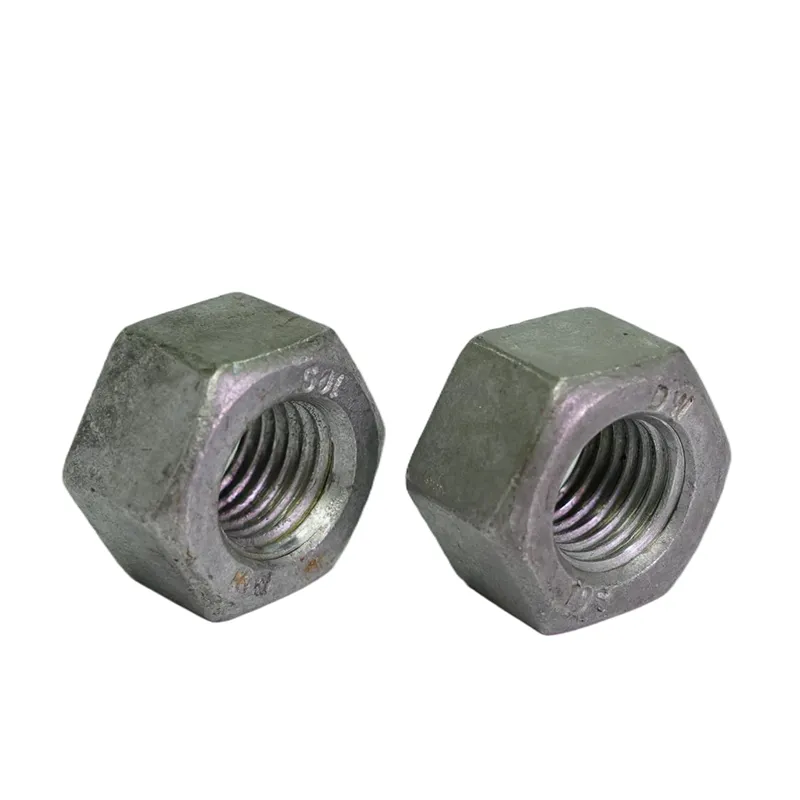

Metric Heavy Nuts A563m
Product: HEAVY HEX NUTS
Standard: ASTM A563M
Raw material: SWRCH45K,40CR,42CRMO,etc.
Surface: Plain,zinc plated,black oxide,H.D.G,etc.
Specification Range: M12-48
Property Class:8S,10S
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Product: HEAVY HEX NUTS
Standard: ASTM A563M
Raw material: SWRCH45K,40CR,42CRMO,etc.
Surface: Plain,zinc plated,black oxide,H.D.G,etc.
Specification Range: M12-48
Property Class:8S,10S
Core Executive Standard: ASTM A563/A563M-24 ASTM A563/A563M-24 is a standard specification for carbon steel and alloy steel nuts issued by the American Society for Testing and Materials (ASTM). It covers both metric and inch sizes, with the 2024 version being the current valid edition. This standard has been approved by U.S. Department of Defense agencies and complies with international standardization principles recognized by the WTO/TBT Committee.
- Scope of Application: Specifies the chemical composition, mechanical properties, and dimensional requirements for 11 grades of nuts, designed to mate with externally threaded fasteners such as bolts and studs used in general structural and mechanical applications.
- Unit Specification: Metric (SI) and inch-pound units are each regarded as standard, and mixed use is prohibited to ensure compatibility and compliance.
- Grade Substitution: Suppliers may provide nuts of higher strength grades specified in this standard to substitute lower-grade ones, provided that there are no substitution prohibition clauses in the inquiry and purchase order.
In our company, ASTM A563M GR.10S is the most frequently produced grade, with specifications mainly ranging from M12 to M24, and it is one of our flagship products. The washer-faced and non-washer-faced versions of the same type of ASTM A563 nuts (including Grade C, GR.8S, GR.10S, etc.) exhibit significant differences in structural design, performance suitability, and application scenarios, with detailed comparisons as follows:
| Aspect | Washer-faced Nuts | Non-washer-faced Nuts |
| Structural Design | ntegrated, non-detachable washer; compact | No integrated washer; used with independent washers (e.g. ASTM F436) |
| Applicable Scenarios | Limited space, high assembly efficiency, vibration-prone environments (heavy machinery, wind turbine nacelles) | Complex conditions requiring flexible washer adjustment (chemical equipment, marine engineering) |
| Operation &Maintenance | Low assembly steps; replace entire nut if washer face is damaged | Damaged Flexible washer replacement; lower maintenance cost; check matching reguarly |
| 螺纹尺寸 d |
M12 | M16 | M20 | M22 | M24 | M27 | M30 | M36 | |
| P | 螺距 | 1.75 | 2.00 | 2.50 | 2.50 | 3.00 | 3.00 | 3.50 | 4.00 |
| S | 最大值 | 21.00 | 27.00 | 34.00 | 36.00 | 41.00 | 46.00 | 50.00 | 60.00 |
| 最小值 | 20.16 | 26.16 | 33.00 | 35.00 | 40.00 | 45.00 | 49.00 | 58.80 | |
| e | 最大值 | 24.25 | 31.18 | 39.26 | 41.57 | 47.34 | 53.12 | 57.74 | 69.28 |
| 最小值 | 22.78 | 29.56 | 37.29 | 39.55 | 45.20 | 50.85 | 55.37 | 66.44 | |
| m | 最大值 | 12.3 | 17.1 | 20.7 | 23.6 | 24.2 | 27.6 | 30.7 | 36.6 |
| 最小值 | 11.9 | 16.4 | 19.4 | 22.3 | 22.9 | 26.3 | 29.1 | 35.0 | |
Mechanical Performance Parameters
Mechanical Properties of ASTM A563 GR.10S Heavy Hex Nuts
- Tensile Strength: ≥ 1150MPa
- Rockwell Hardness (HRC): 26-38; after aging treatment, the hardness distribution is uniform with better strength stability
- Mating Bolts: Compatible with Grade 12.9 ultra-high-strength bolts to meet the fastening requirements of ultra-high loads
Application Fields of ASTM A563 GR.10S
- Severe Corrosion Scenarios: Fastening parts of marine engineering, ship equipment, and coastal bridges, capable of withstanding corrosion from seawater and marine atmosphere.
- High-load Corrosion-resistant Equipment: Core fastening parts of chemical high-pressure vessels and corrosion-resistant pumps and valves, balancing ultra-high strength and strong corrosion resistance.
- High-end Energy Field: Nacelle components of offshore wind turbines and coastal photovoltaic supports, capable of withstanding strong wind vibration and salt spray corrosion.
Notes on Usage
Grade Substitution:
It is strictly prohibited to substitute GR.8S for GR.10S in ultra-high-load and highly corrosive scenarios; GR.10S can be used as a downward substitute for GR.8S, but the cost rationality should be considered.
Heat Treatment Taboo:
GR.10S shall not be subjected to high-temperature heating again after aging treatment, otherwise, its strength will decrease. During assembly, avoid high-temperature welding operations near the nut.
Surface Maintenance:
After use in corrosive environments, regularly clean impurities and salt deposits on the nut surface to avoid accumulation of corrosive media and extend the service life.
Storage Requirements:
Store separately in a dry and well-ventilated warehouse, avoid mixed storage with carbon steel parts to prevent surface corrosion caused by electrochemical corrosion.
Main Sales Markets of the Product
America, the Middle East, and Southeast Asia
Packaging and Logistics
Main Packaging Materials: Small bags, small boxes, cartons, pallets, and iron drums
Customized packaging can be provided according to customer requirements.
Flexible bulk ordering schemes are available; transportation terms and delivery schedules are negotiable.
Certification and Guarantee
We are certified by ISO9001:2015, IATF16949:2016, and other international quality standard certifications.
Long-term quality assurance and comprehensive after-sales service are provided.
Established in 2005, our company has evolved over two decades of continuous development into a leading regional enterprise in the fastener industry with fully automated end-to-end production. With an annual output value exceeding RMB 130 million, our product range covers diverse market segments from mid-range to high-end and is distributed worldwide

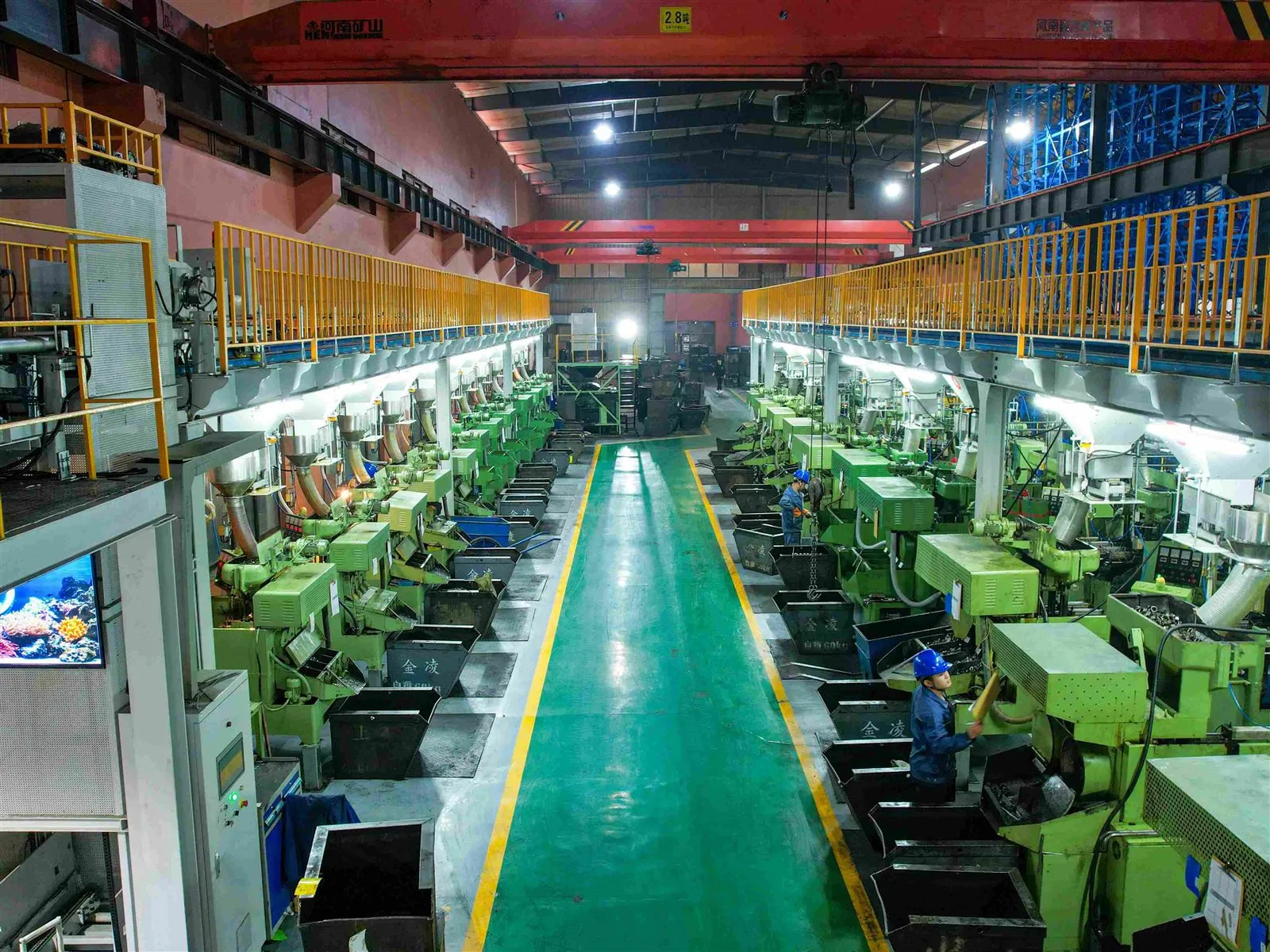

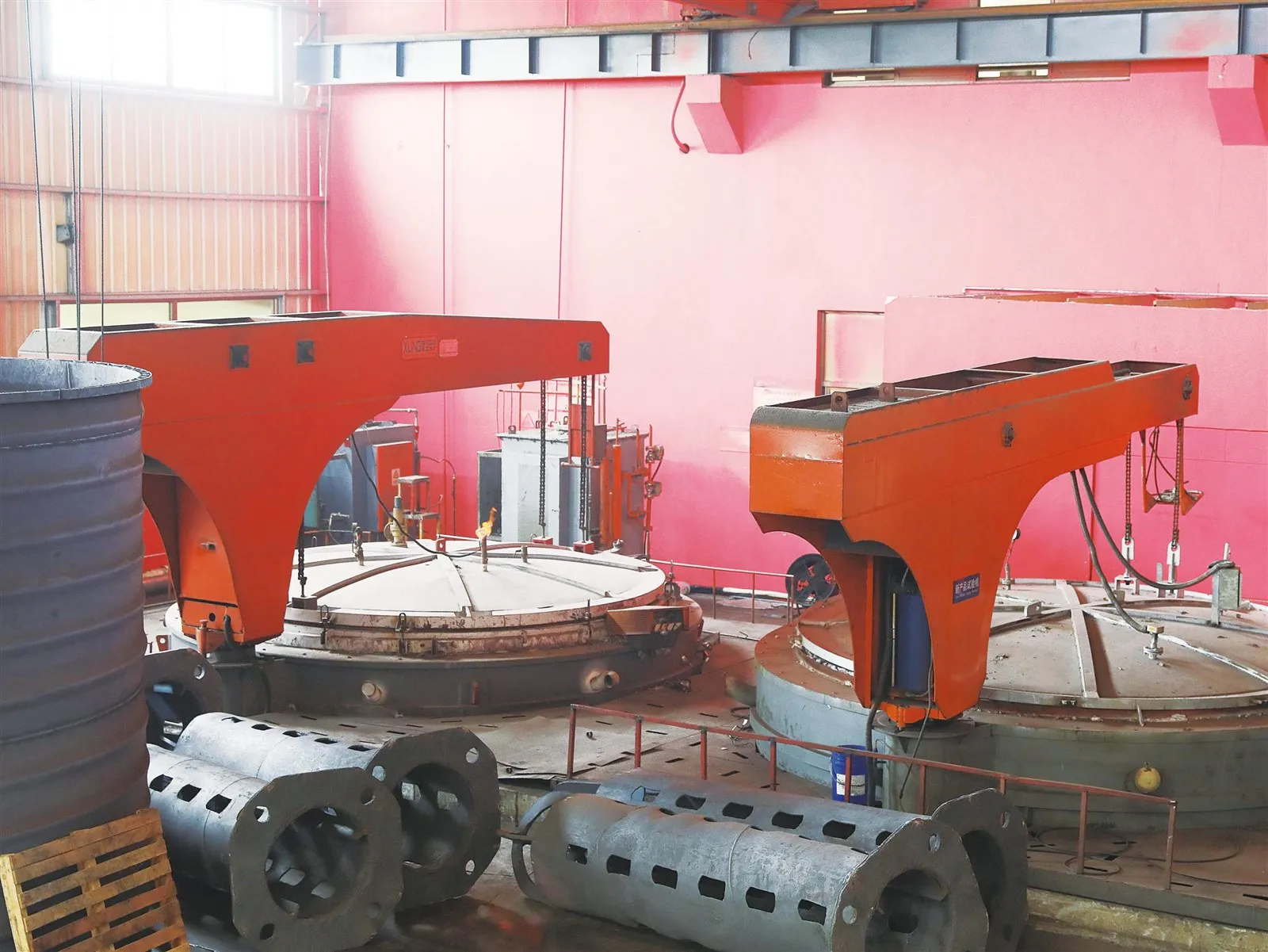

Our factory & quipment
