High-strength Structural Nuts
Product: High-strength structural Nuts
Standard: EN14399-3
Raw material: SWRCH45K,40CR,42CRMO,etc.
Surface: Plain,zinc plated,black oxide,H.D.G,etc.
Specification Range: M6-M24
Property Class:10HR
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Product: High-strength structural Nuts
Standard: EN14399-3
Raw material: SWRCH45K,40CR,42CRMO,etc.
Surface: Plain,zinc plated,black oxide,H.D.G,etc.
Specification Range: M6-M24
Property Class:10HR

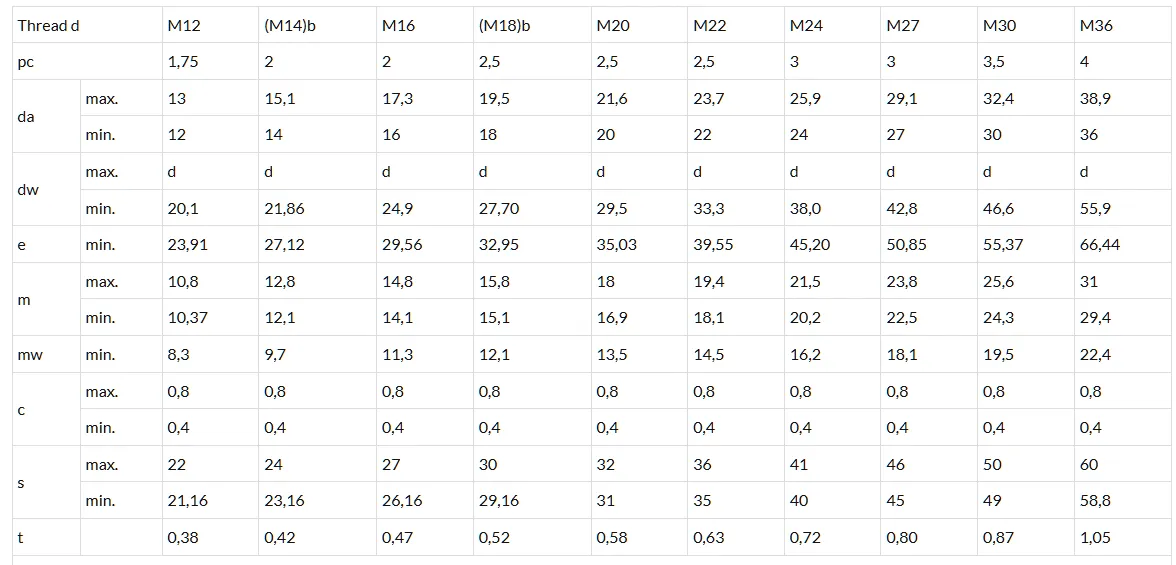

 a For hot dip galvanized nuts the above dimensions apply before galvanizing.b Non-preferred sizes. c P is the pitch of thread. d dw,max. = sactual |
|||||||||||
High-strength Structural Nuts (EN14399-3:2015)
• Product Name: High-strength structural Nuts
• Executive Standard: EN14399-3:2015 (Issued by the European Committee for Standardization (CEN), full name: "High-strength structural bolted connection assemblies - Part 3: Hexagon nuts and plain washers assemblies". This 2015 version replaces the old EN14399-3:2005.)
• Raw Materials: Nuts are made of high-strength alloy structural steel such as SWRCH45K, 40Cr, 42CrMo, and 35CrMo, with quenching and tempering heat treatment to enhance strength and toughness; washer materials are matched as needed.
• Surface Treatments: All comply with EN ISO 10683 standard, including regular processes (black oxide coating, suitable for indoor dry environments with low cost; electro-galvanizing, passing 48-hour neutral salt spray test, applicable to slightly humid environments) and engineering-grade processes (hot-dip galvanizing, passing over 1000-hour salt spray test, suitable for outdoor and marine climates; Dacromet coating, no hydrogen embrittlement risk and excellent corrosion resistance, ideal for high-strength and high-corrosion-resistance scenarios). These treatments improve rust and corrosion resistance, extend service life, and enhance surface lubricity for easy assembly and disassembly.
• Specification Range: Nominal diameter mainstream is M12–M36, with customizable large specifications of M39–M48; thread type is default metric coarse thread, and fine threads can be customized for special scenarios; precision grades include Grade 10 (regular high strength) and Grade 12 (ultra-high strength); supply methods cover set supply (1 nut + 1 washer) and bulk matching supply (proportionally matched nuts and washers).
Product Structure and Performance
Core Structure Adopting an integrated matching design of "nut + washer". The across-flats dimension of the hexagon nut complies with EN 1092 standard, and the head height is designed to match the high-strength grade; the outer diameter of the plain washer is precisely matched with the nut size, with a thickness of ≥3mm, and the edges are chamfered to avoid scratching the surface of connected parts during assembly. The washer surface can be optionally designed with anti-slip tooth texture, which can engage with the contact surface of connected parts, enhance anti-loosening and anti-vibration performance, and adapt to vibration working conditions.
Mechanical Performance Strictly in line with EN14399-3:2015 and ISO 898-2 standards. For Grade 10 products (regular high strength): tensile strength ≥1000MPa; yield strength ≥800MPa; Rockwell Hardness (HRC) 32–39 with uniform hardness and no cracks; impact energy ≥30J in -20℃ low-temperature environment, no low-temperature brittle fracture risk; can bear 10⁶ alternating loads with fatigue limit ≥450MPa; recommended tightening torque is 450–500N·m when matched with M20 bolts (adjustable according to actual working conditions).
Applications and Usage Notes
Application Fields Core application in steel structure engineering, and widely used in heavy machinery manufacturing, transportation infrastructure, wind power and new energy fields, chemical and marine engineering, etc.
Usage Notes It is strictly prohibited to replace this product with ordinary nuts (such as DIN 934) in core load-bearing parts to avoid fastening failure due to insufficient strength and safety accidents; Grade 10 products cannot replace Grade 12 products for ultra-high load scenarios, and selection must be based on actual load grades.
Other Information
• Main Sales Markets:
Europe, the Middle East, Southeast Asia
• Packaging & Logistics:
Packaging materials include small bags, small boxes, cartons, pallets, and iron drums, with customized packaging available; flexible bulk ordering plans are provided, and transportation terms and delivery schedules are negotiable.
• Certification & Warranty:
Certified by international quality standards such as ISO9001:2015 and IATF16949:2016, providing long-term quality assurance and comprehensive after-sales service.
• Matching Products:
Priority matching with EN series high-strength bolts; auxiliary accessories can be selected according to working conditions to form a complete fastening system.
Established in 2005, our company has evolved over two decades of continuous development into a leading regional enterprise in the fastener industry with fully automated end-to-end production. With an annual output value exceeding RMB 130 million, our product range covers diverse market segments from mid-range to high-end and is distributed worldwide

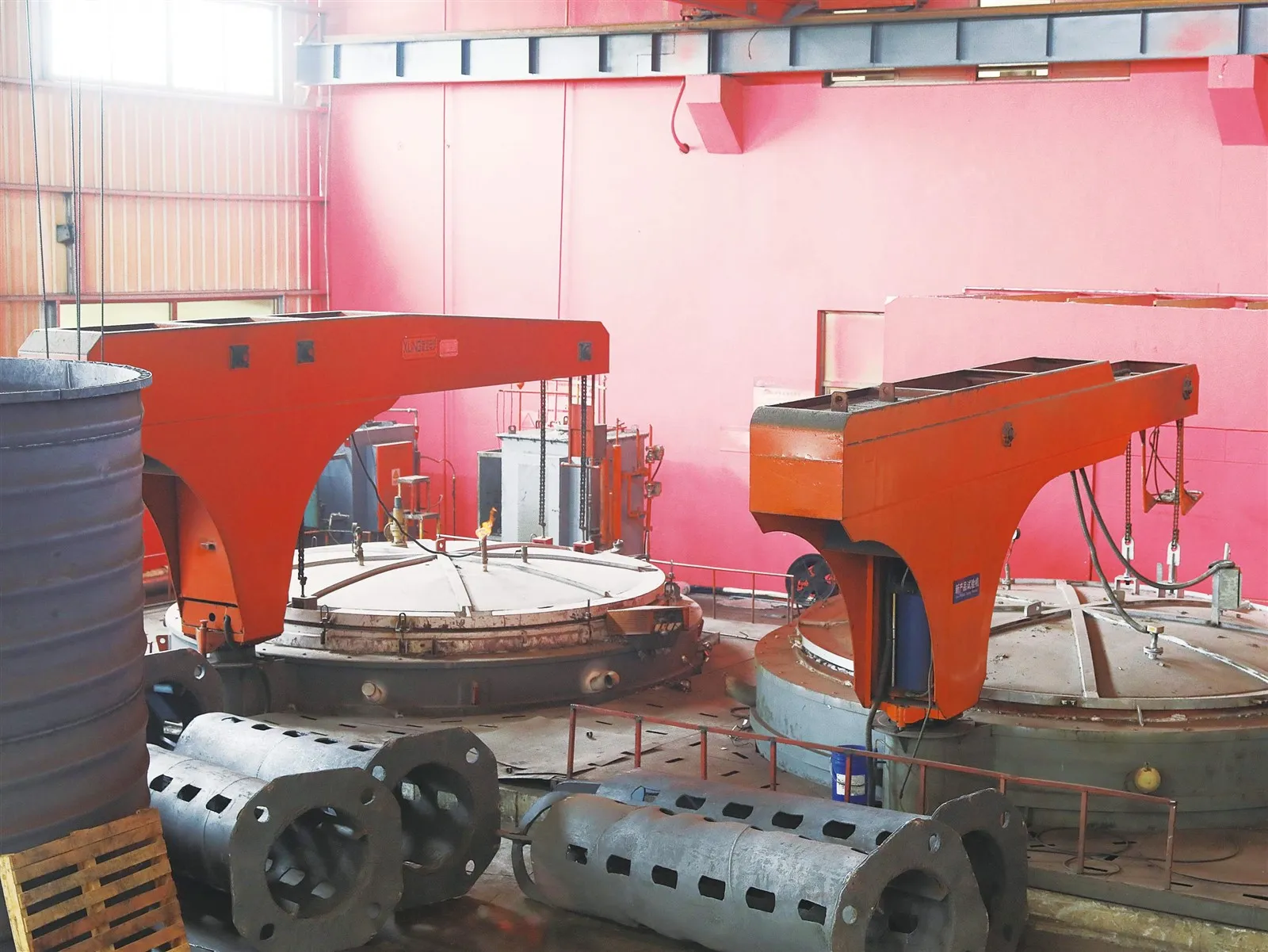

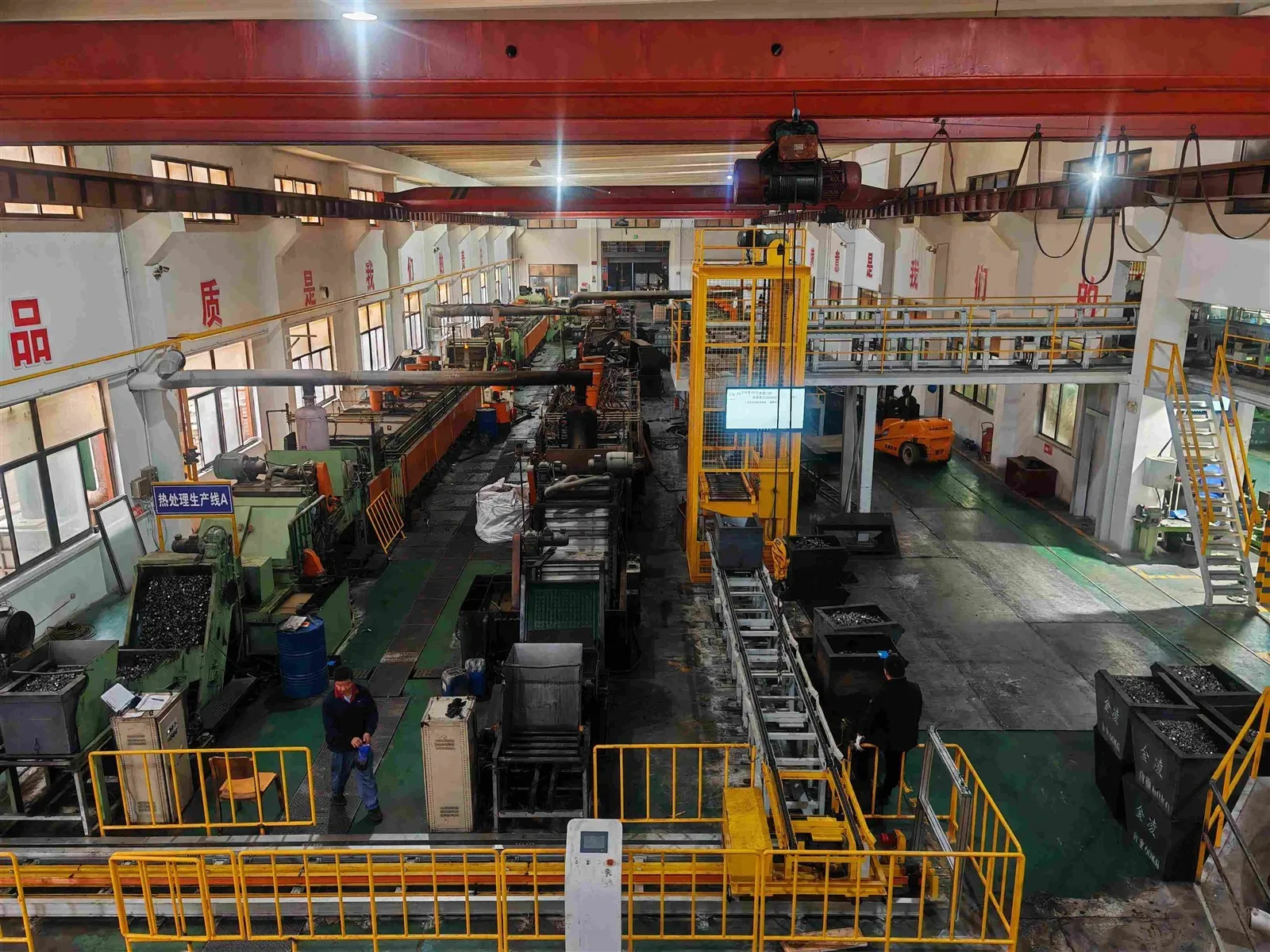

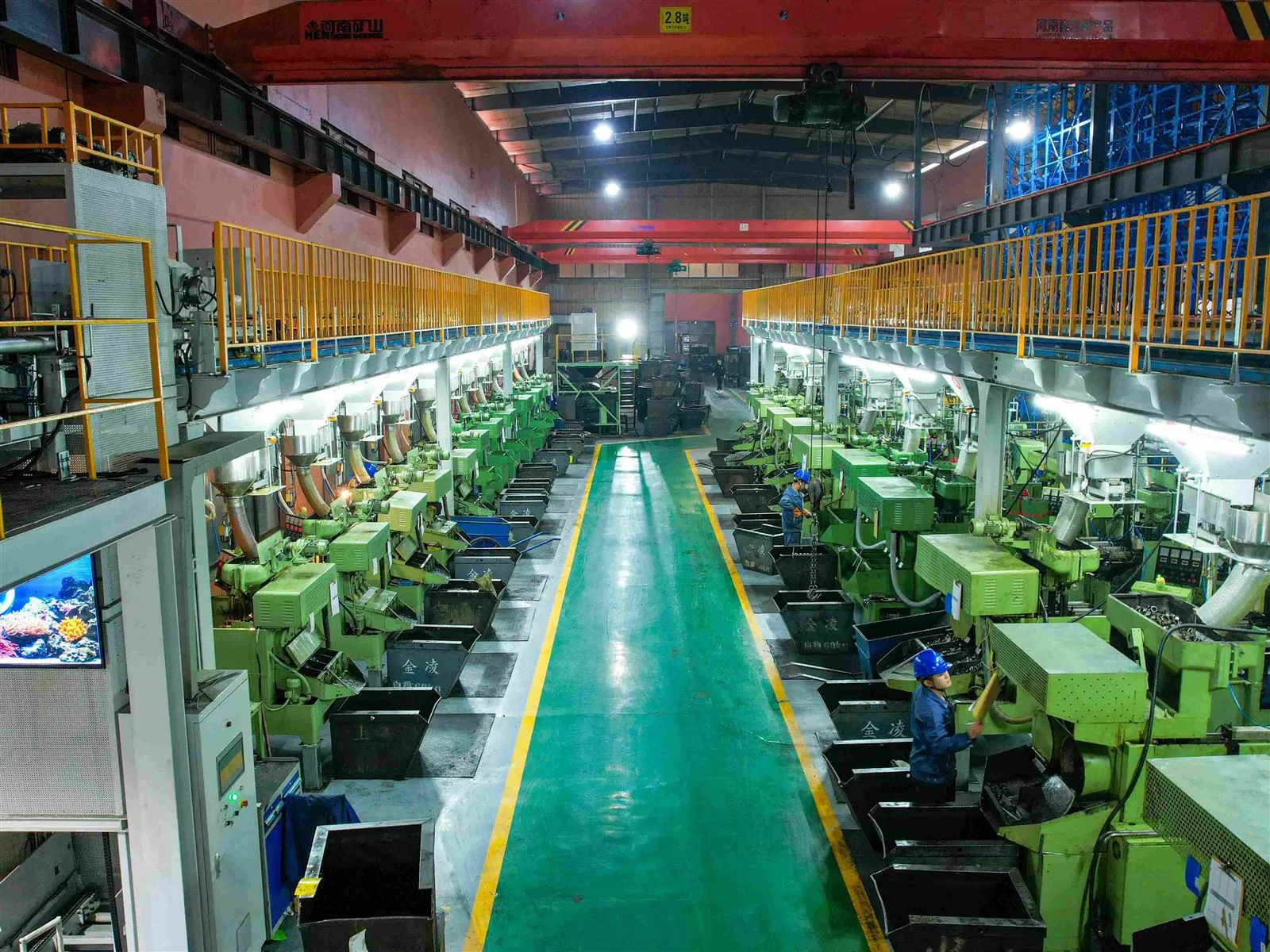

Our factory & quipment
