Galvanized Nylon Lock Nut
Product: Nylon Lock Nuts
Standard: DIN985
Material: Q195,ZT195,08AL,SWRCH35K/45K,40CR,42CRMO,etc.
Surface: Plain,zinc plated,black oxide,H.D.G,etc.
Specification Range: M3-M48
Property Class:6,8,10,12
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Product: Nylon Lock Nuts
Standard: DIN985
Material: Q195,ZT195,08AL,SWRCH35K/45K,40CR,42CRMO,etc.
Surface: Plain,zinc plated,black oxide,H.D.G,etc.
Specification Range: M3-M48
Property Class:6,8,10,12
Core Function and Application
DIN985 is essentially a hex lock nut with a non-metallic (nylon) insert. Its core function is to generate friction by creating a press-fit between the nylon ring inside the nut and the bolt threads, forming an anti-loosening to effectively prevent the nut from coming loose under vibration, impact, or dynamic loads, ensuring the reliability of threaded connections. Meanwhile, the nylon insert can reduce direct friction between threads protect the threads of connected parts, and extend service life.
Main Industry Application Scenarios
Transportation Field:
Car engine compartment, chassis suspension, railway transit bogie, braking system, aircraft wings, and other parts with large vibration;
Engineering Machinery and Heavy Equipment Field:
Excavator, crane, hydraulic pipeline of wind power equipment, structural parts connection;
Electronic and Precision Machinery Field:
Main spindle, guide rail fixation of machine tools, internal connections of electronic devices, equipment;
Outdoor and High-risk Environment Field:
Bridges, steel structures of buildings, petrochemical pipelines, nuclear power engineering equipment, etc., which have requirements for connection safety.
Core Features
Excellent anti-loosening performance:
Specifically designed to resist vibration and dynamic loads, with strong anti-loos reliability;
Convenient installation:
Hexagonal structure adapts to conventional wrenches, no additional locking parts needed, simplifying the assembly process;
Wide adaptability:
Available in low carbon and medium carton steel (Class 6, 8, 10) for different working conditions;
Wide temperature adaptability:
Can operate stably in the environment of -50°C to 120°C;
Reusable:
Can be disassembled and assembled multiple times within the specified limit and still maintain certain anti-loosening performance;
Full specification coverage:
Thread diameter M3 to M48, can be customized with fine threads, reverse threads, etc., to meet different size requirements.
Established in 2005, our company has evolved over two decades of continuous development into a leading regional enterprise in the fastener industry with fully automated end-to-end production. With an annual output value exceeding RMB 130 million, our product range covers diverse market segments from mid-range to high-end and is distributed worldwide

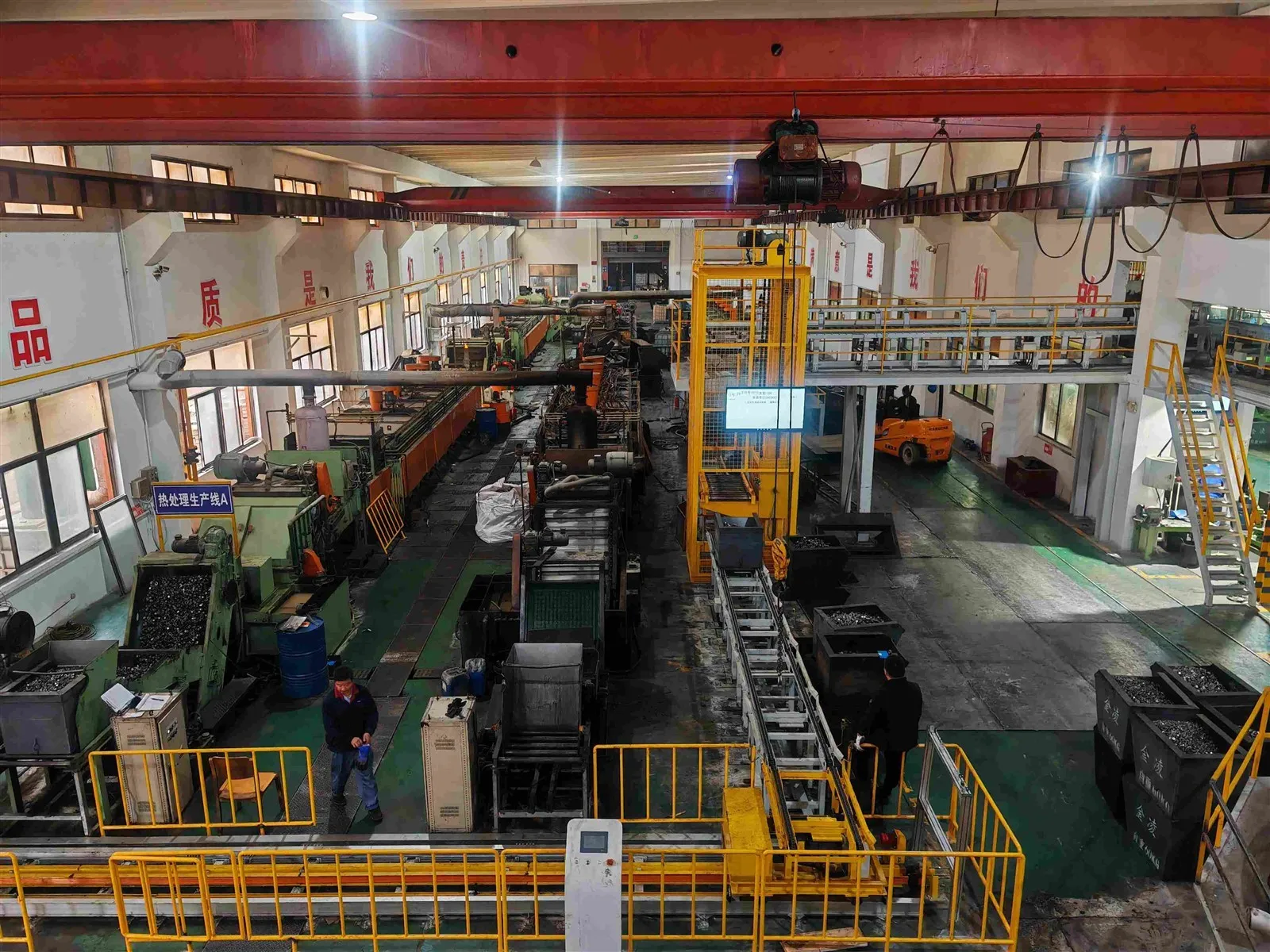

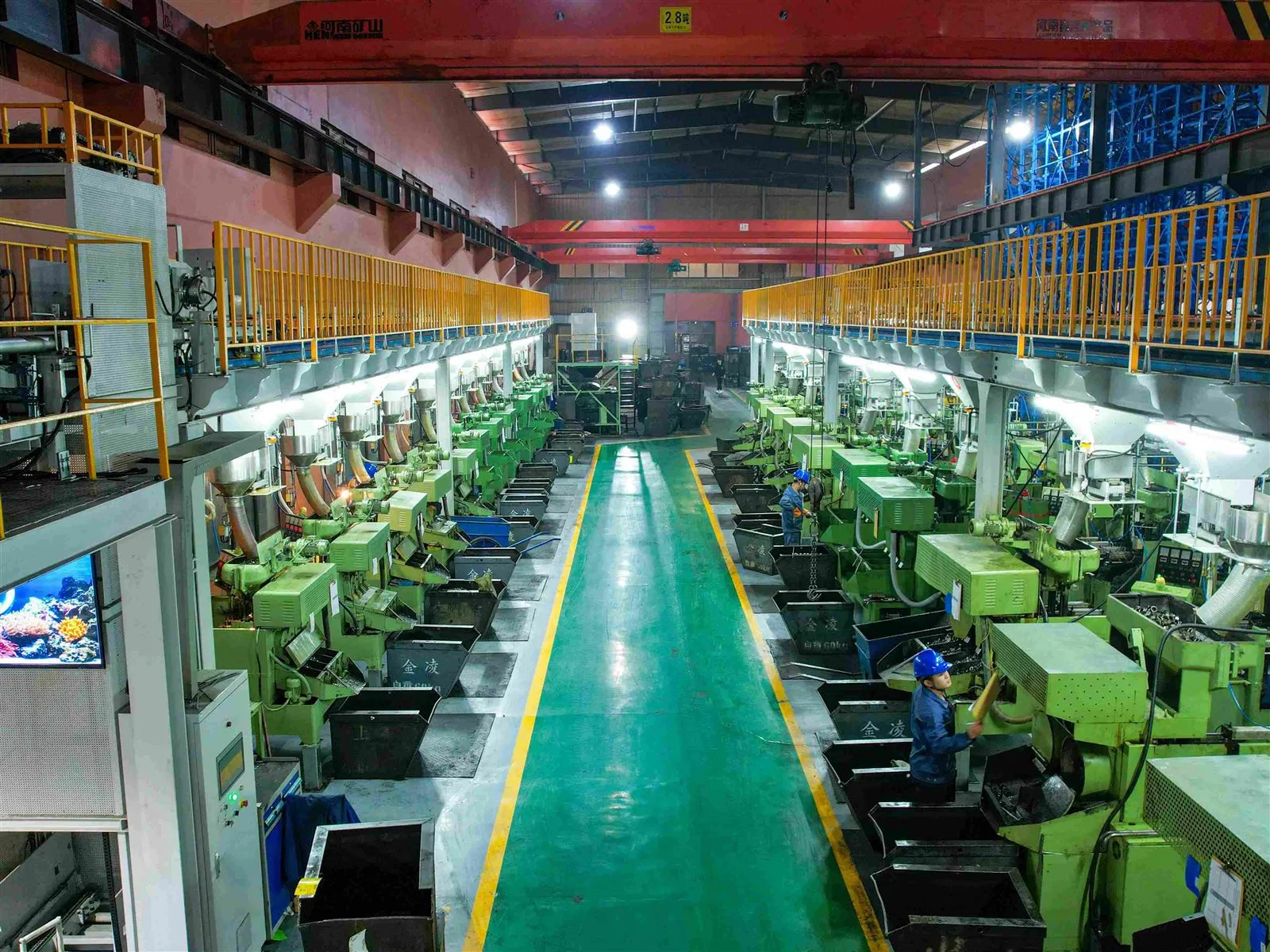

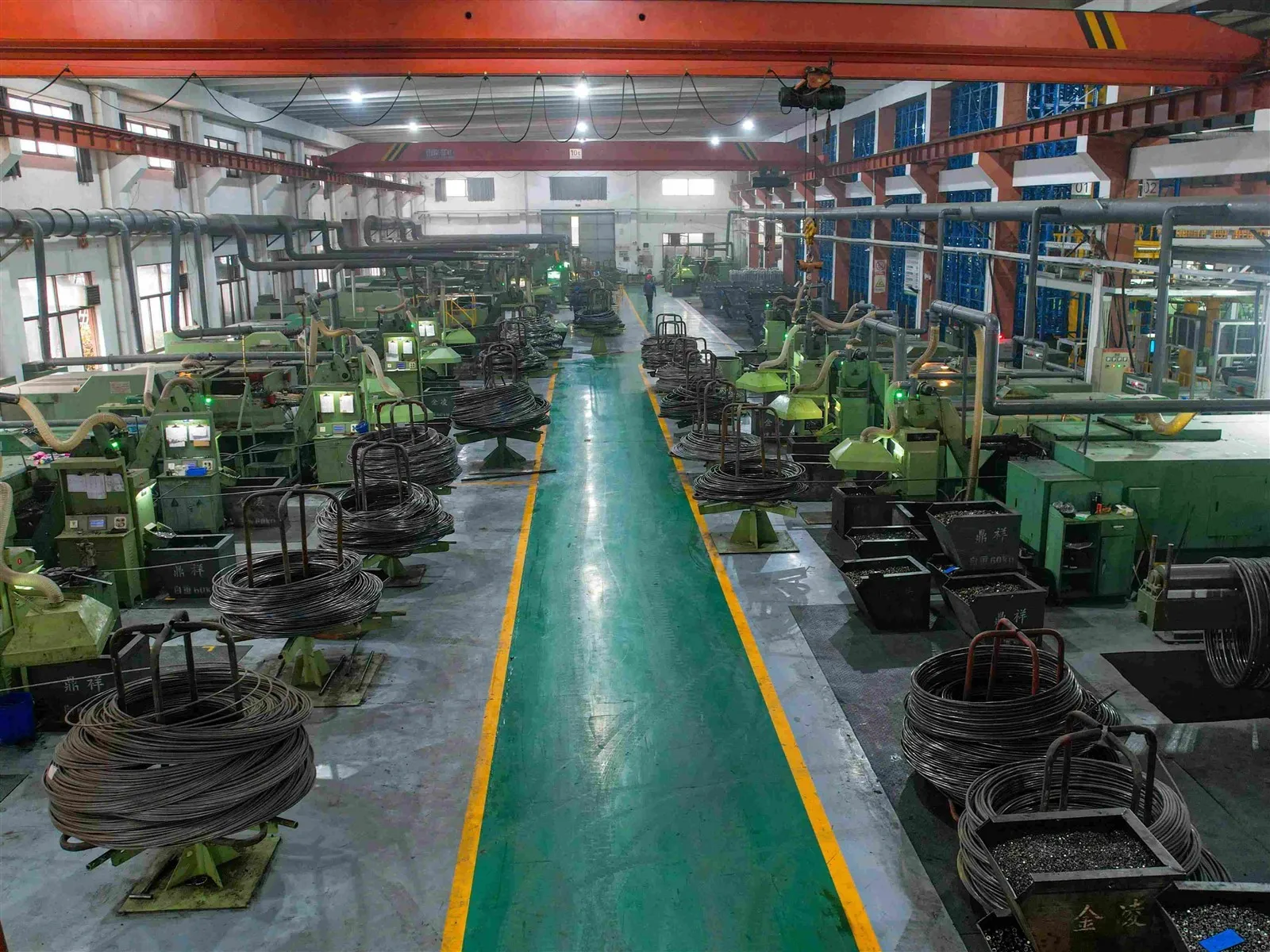

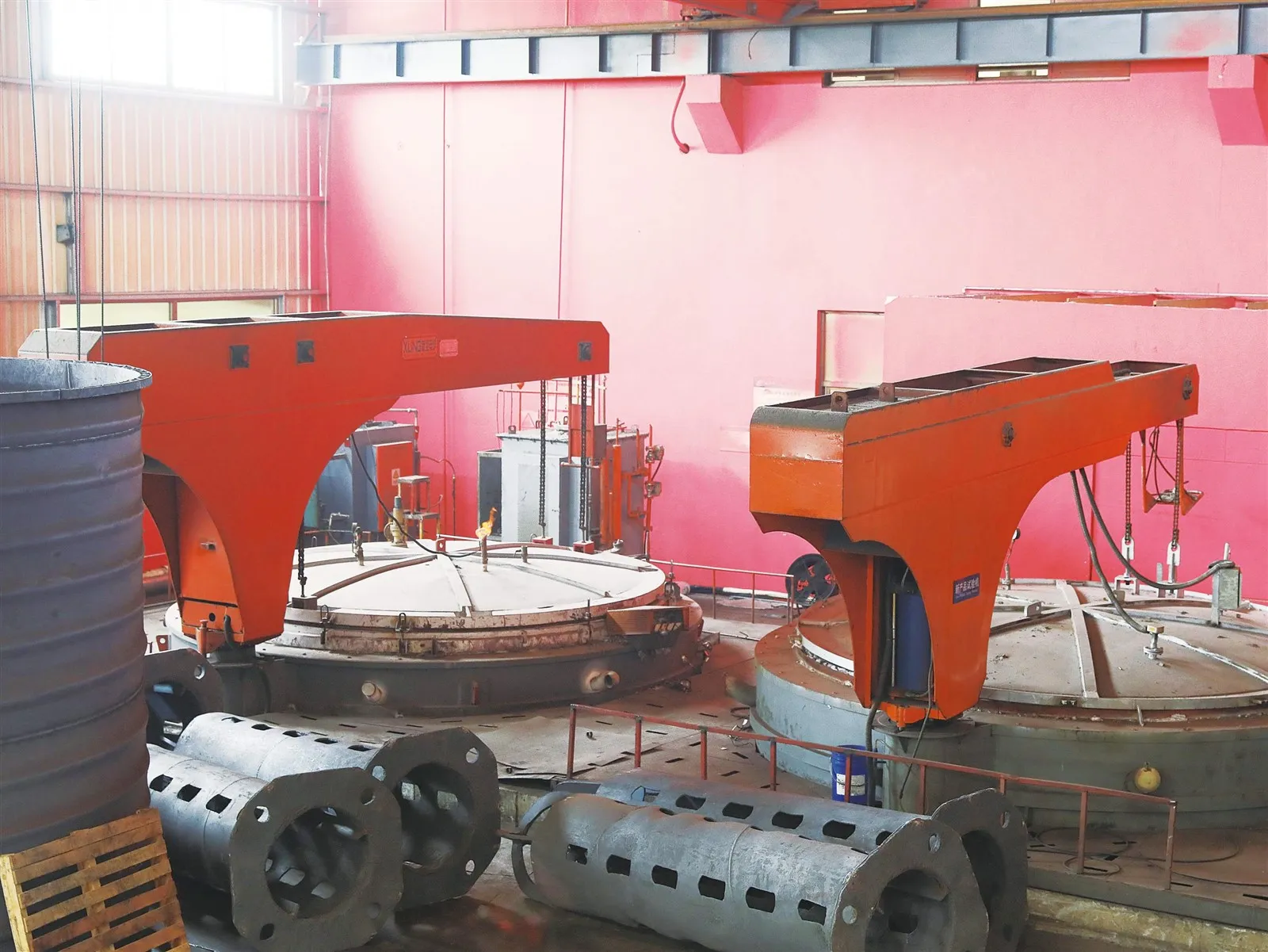

Our factory & quipment
