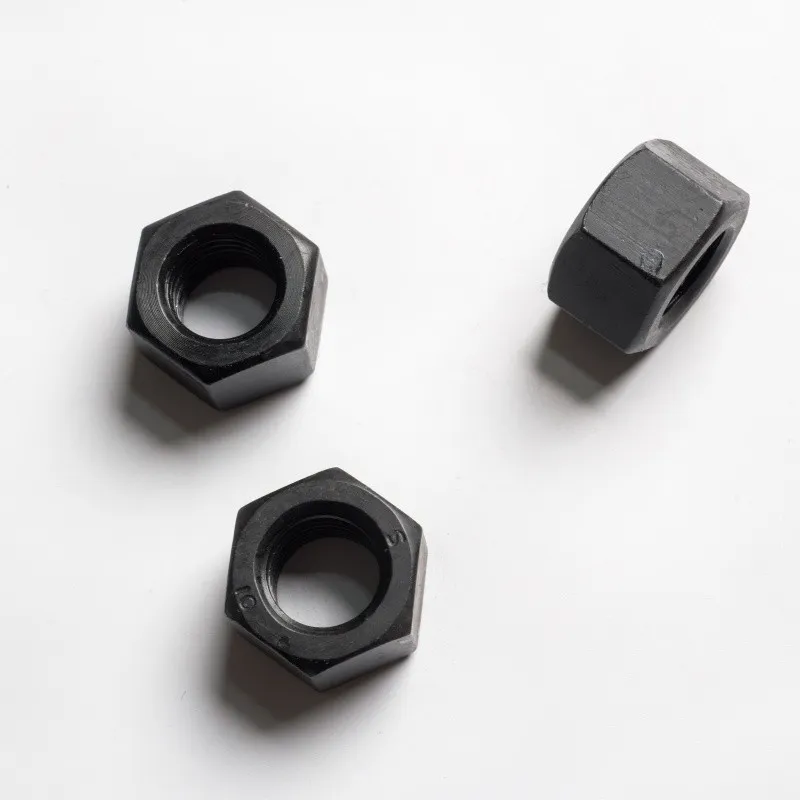

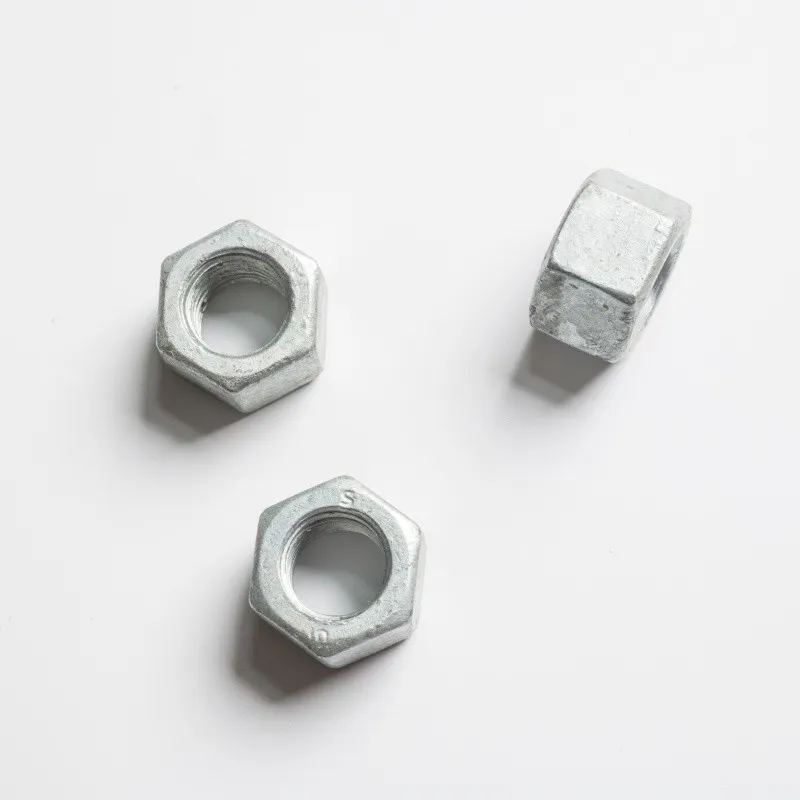

Iso4033 Hexagon Nuts
Product:Hexagon Nuts
Standard: ISO4033
Raw material: Q195,SWRCH35K/45K,40CR,42CRMO,etc.
Surface: Plain,zinc plated,black oxide,H.D.G,etc.
Specification Range: M5-M39
Property Class:6,8,10,12
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Product:Hexagon Nuts
Standard: ISO4033
Raw material: Q195,SWRCH35K/45K,40CR,42CRMO,etc.
Surface: Plain,zinc plated,black oxide,H.D.G,etc.
Specification Range: M5-M39
Property Class:6,8,10,12
Mechanical Properties
ISO 4033 Hexagon Nuts – Introduction, Performance, Applications
1. Introduction to the Standard ISO 4033 specifies Hexagon high nuts (style 2) - Product grades A and B.
• Latest version: ISO 4033:2023
• Scope: Metric coarse thread M5–M39; materials include carbon steel and stainless steel.
• Product grades:
◦ Grade A: For threads ≤ M16, high precision.
◦ Grade B: For threads > M16, general industrial use.
• Key feature: Style 2 = high nut, with nominal height ≥ 0.8D (higher than style 1 standard nuts), providing stronger load capacity and anti-loosening performance.
Core Performance

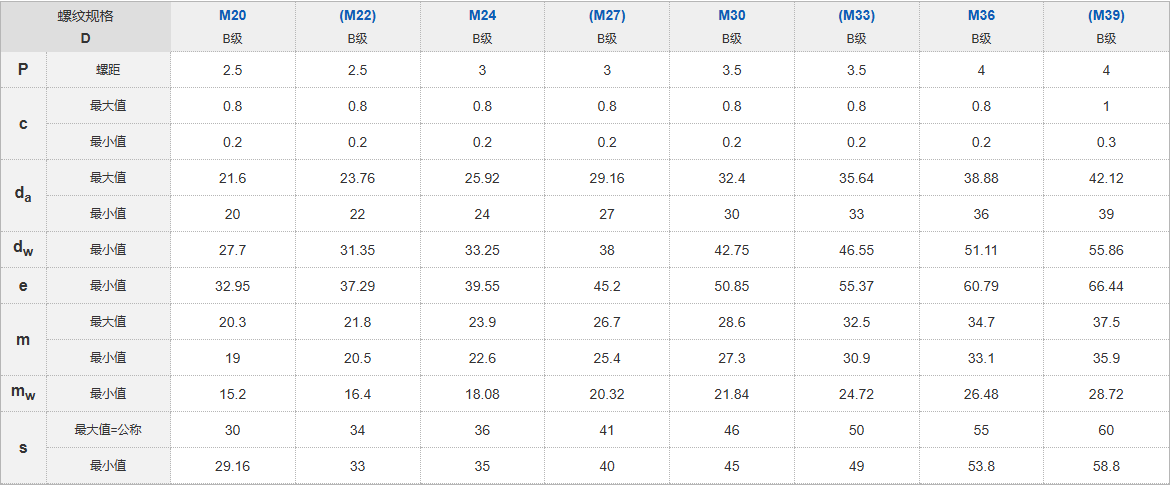

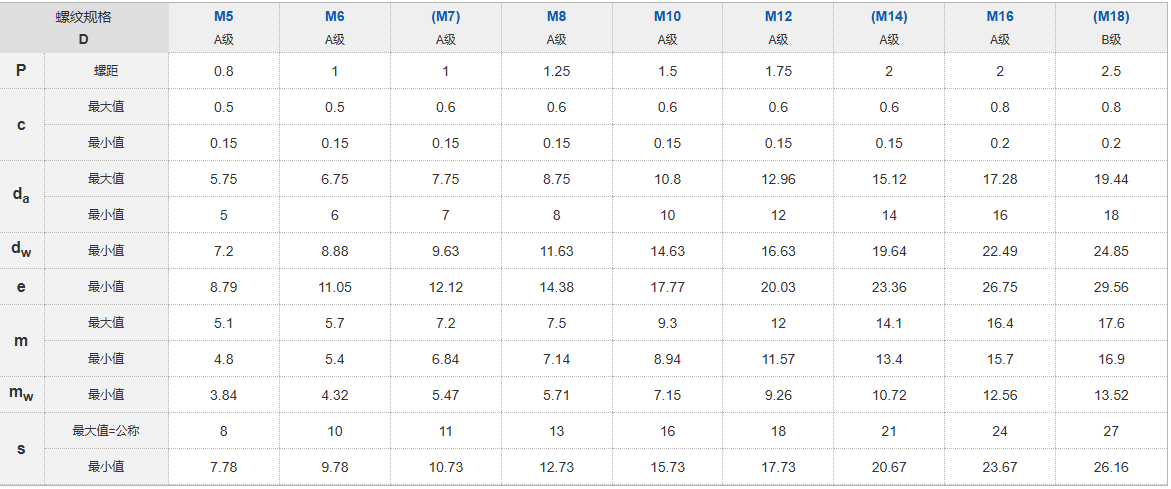

Dimensions & Structure
• Height: Approximately 0.8D–1.0D
• Single chamfer on the mounting face for easier assembly
• Larger bearing surface to reduce contact pressure
Mechanical Properties (per ISO 898‑2)
Materials & Surface Treatment
Carbon steel:
Quenched and tempered per ISO 898 2
Stainless steel:
A2 50/70, A4 50/70/80 (corrosion resistant)
Surface finishes:
Zinc plating, phosphating, Dacromet, etc. (per ISO 4042)
Accuracy Grades
Grade A: Tighter tolerances, used in precision assemblies, high appearance and vibrating environments
Grade B: General purpose, cost effective with good interchangeability
Main Applications Due to its greater height, high strength and good anti‑loosening performance, ISO 4033 is widely used in:
• Heavy machinery: Construction machinery, mining equipment, cranes
• Automotive & transportation: Chassis, frames, hubs, rail transit
• Steel structures: Bridges, factory buildings, towers, high‑rise buildings
• Power equipment: Engines, compressors, generator sets
•Shipbuilding & marine: Deck machinery, cabin structures (stainless steel version)
• General industry: Machine tools, assembly lines, pressure vessels
Certification and Warranty
We are certified by ISO9001:2015, IATF16949:2016, and other international quality standard certifications.
Long-term quality warranty and comprehensive after-sales service are provided.
Functional Benefits
Safety & Reliability: High strength and heavy structure provide resistance to heavy load, earthquake, wind and fatigue, reducing connection failure risk.
Efficient Installation: Heavy hexagon design with standard torque ensures fast installation, stable quality and less rework.
Durability & Corrosion Protection: HDG or Dacromet extends service life, reduces maintenance and lowers lifecycle cost.
Compliance: Fully compliant with Australian standards and passes local inspection.
Economics: Higher unit cost than standard nuts, but lower total cost due to fewer components and simplified joints.
