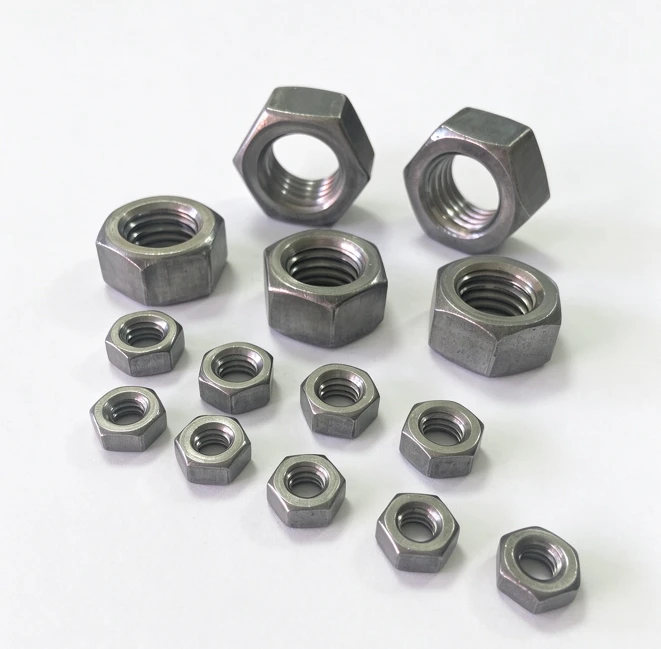

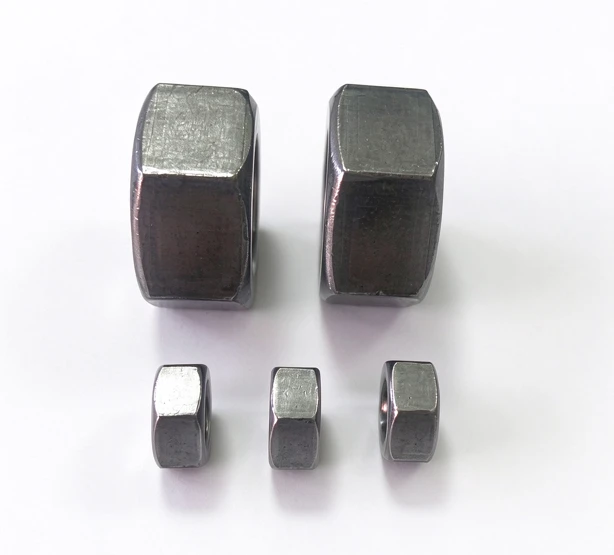

Hex Nut H=90% Hight

Core Info



Product:Hex nut H=90% hight
Raw material:A3,35K,45K

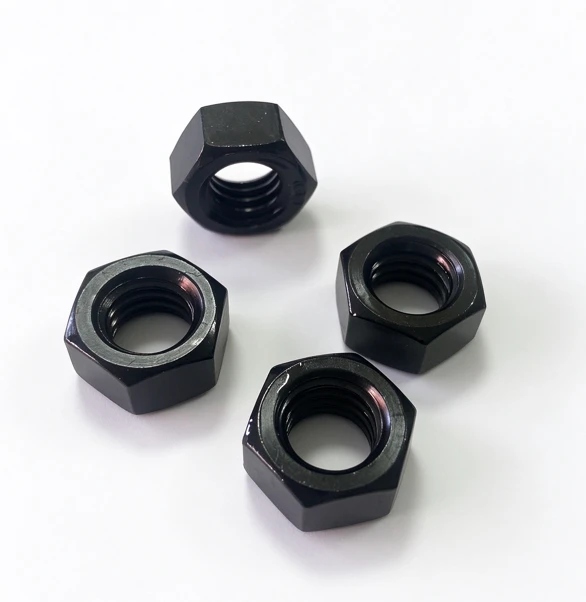

Surface:PLAIN,BLACK
Size:1/4"-1"
Property Class:2/5/8



1. The core is thinned by 10%, resulting in a reduction of approximately 10% in the engaged threads, leading to a slight decrease in the anti-unscrewing load capacity of the thread teeth; the cold-heading strength of the base remains unchanged.
2. The wrench jaw size remains the same, allowing standard sockets to be used directly without the need to replace assembly tools.
3. Compared to thin nuts, it has significantly higher load-bearing capacity; compared to standard ordinary nuts, it saves 10% in axial dimensions.

1. Sheet metal, cabinet, chassis and electrical equipment assembly

Thin sheet metal, electric control cabinets, distribution boxes, instrument housings; thin sheet metal thickness, limited bolt protrusion allowance, slightly restricted space, low load requirements, no high strength needed.

Typical applications: cabinet fixing, cover plates, brackets, wiring bases, static load, low vibration.

2. General mechanical frames, shields and protective cover plates

Equipment outer protective shields, guardrails, auxiliary frame brackets, non-primary load-bearing connections; only for fixing and limiting, no alternating heavy loads.

3. Pipe supports and light-duty hangers

Light-duty pipe clamps and supports for HVAC and water supply & drainage systems, static load and low vibration; limited bolt protrusion, and thin 6172 thin nuts are undesirable.

4. Automotive / agricultural machinery interior parts, auxiliary small components, non-safety parts

Instrument brackets, plastic part fixing, exterior trim guards. Strictly prohibited for safety-critical connection points such as chassis, braking and suspension systems.

5. Furniture, light-duty conveying brackets and assembly line frames

Aluminum profile frames, light-duty conveyor line frames, low load, compact space, static or slight vibration.

6. Used as secondary locking nuts (back nuts, anti-loosening auxiliary parts)

Standard nuts are used as primary nuts, and nuts with 90% of standard thickness serve as secondary locking assistance to share anti-loosening functions, without bearing the full load independently.

Company covers an area of 1,500 square meters, equipped with advanced production equipment, and realizes one-stop manufacturing of products. The entire process includes: raw material feeding, annealing, wire drawing, cold heading, tapping, heat treatment, surface treatment, packaging and shipment. Our products are exported to Europe, America and the Middle East markets, and their quality has been well received by customers.
