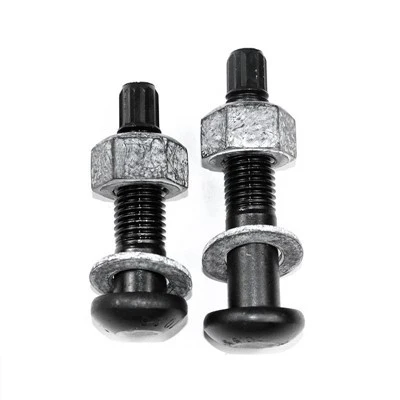

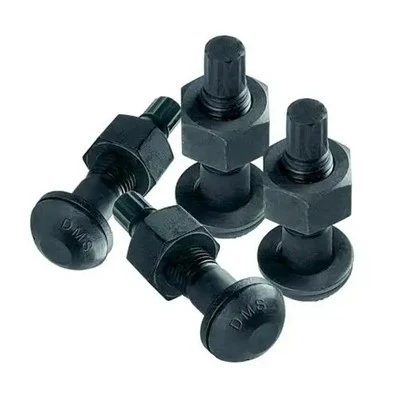

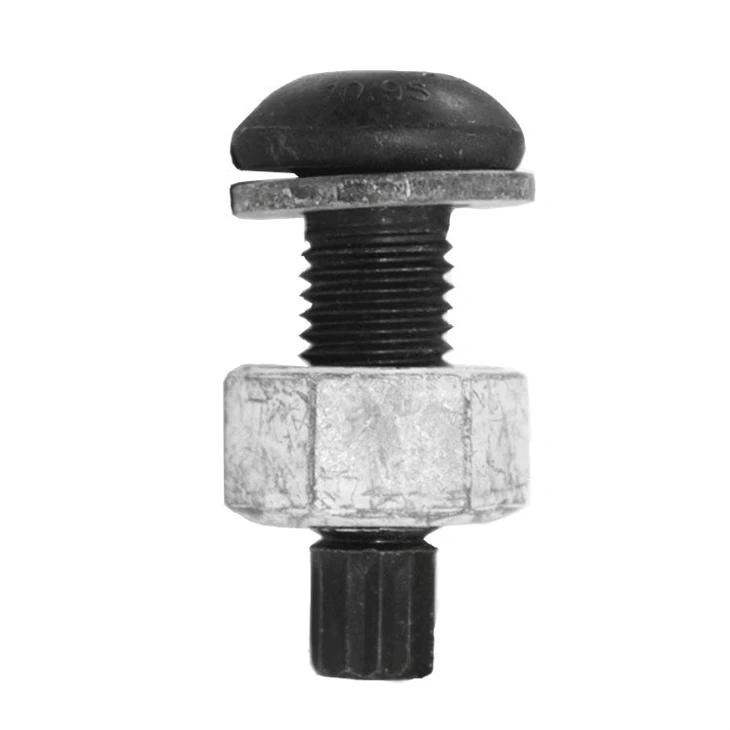

GB3632 Sets Of Torshear Type High Strength Bolt Hexagon Nut And Plain Washer For Steel Structures
Product: Sets of torshear type high strength bolt hexagon nut and plain washer for steel structures
Standard: GB3632
Material: 40CR, 35CRMO, 42CRMO, alloy structural steel
Surface: black oxide, Phosphated etc.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Product: TWIST OFF TYPE TENSION CONTROL BOLTS
Standard: GB3632
I SET INCLUDING 1 BOLT 1NUT 1 WASHER ASSEMBLLY
Friction-type connection. Slip coefficient of faying surface ≥0.45 after sandblasting. Torque coefficient of bolt set: 0.110~0.150. Automatic shear tail breaking, easy site inspection.
Specification Range: M16-M30
Property Class: 10.9S
Product Overview

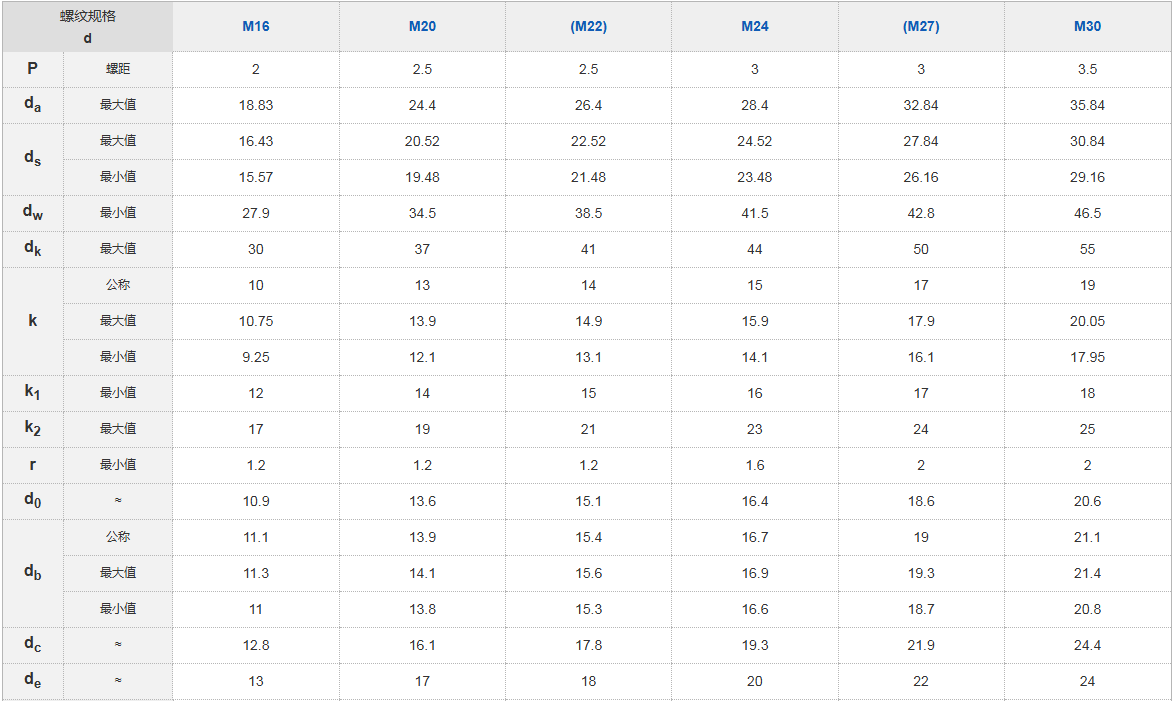

GB/T 3632-2008 covers sets of torshear type high strength bolt, hexagon nut and plain washer for steel structures. Performance grade: 10.9S. Thread sizes: M16, M20, M22, M24, M27, M30.
This friction-type bolt connection transfers load by friction between steel faying surfaces. The slip coefficient is determined by plate surface preparation: sandblasted surface normally achieves slip coefficient ≥0.45.

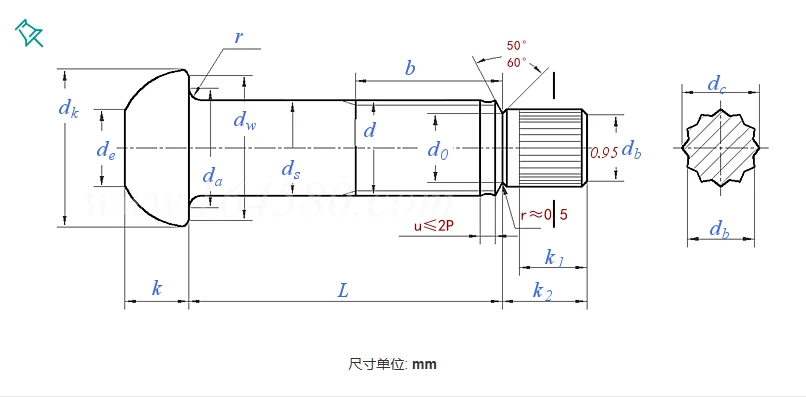

The bolt features a torsional shear tail (梅花头). When tightened by special electric wrench, the tail breaks off automatically once the required pre-tension force is reached. Visual inspection is straightforward after installation.
The torque coefficient of the bolt connection 副 shall be 0.110~0.150, standard deviation ≤0.010.
Widely used for steel buildings, steel bridges, towers and heavy mechanical steel frames. Surface options: black finish, hot-dip galvanized, zinc-nickel coating, Dacromet, Geomet etc.
Core Feature
The tail of the torque-shear bolt has a hex head (shear groove), which is tightened with a special electric wrench for construction. When the specified pre-tension is reached, the hex tail is directly sheared off, thereby determining that the final tightening is in place; the pre-tension control is stable, and the on-site inspection is simple.
Compare with large hexagon high-strength bolts
GB/T3632: Twist-off type, 10.9S, with spline end, special wrench, simple pre-tightening control
GB/T1228: Large hex high-strength bolt, 10.9S / 8.8S, torque method / torque-angle method installation
Maintenance
- Conduct regular visual inspections of bolt connections; check for corrosion, loosening, or damage to the bolt head/fracture surface.
- For critical structural nodes, perform periodic preload testing with professional equipment; replace bolts immediately if preload loss or material fatigue is detected.
- Do not perform any secondary processing (grinding, welding, drilling) on the bolts after installation, as this will damage their mechanical properties.
Main Sales Markets
North America, the European Union, the Middle East, Southeast Asia, Australia, and other regions with high standards for steel structure installation precision and American ASTM fastener compliance.
Packaging
Packaging Options
Small packaging: Sealed plastic bags (with anti-rust oil) + cardboard small boxes (marked with specification/grade/quantity).
- Bulk packaging: Corrugated cartons + wooden pallets, iron drums (for high-corrosion protection requirements).
- Customized packaging: Labeled packaging with project numbers, anti-rust vacuum packaging, and fixed-quantity packaging for on-site construction efficiency.All packaging is designed to prevent bolt thread/spline damage and corrosion during transportation and storage.
