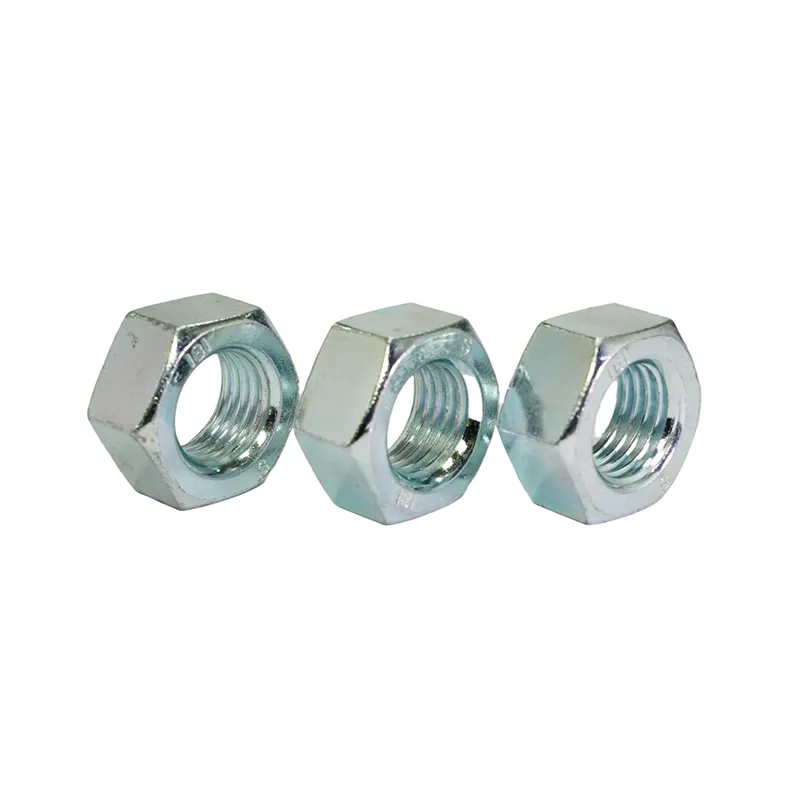

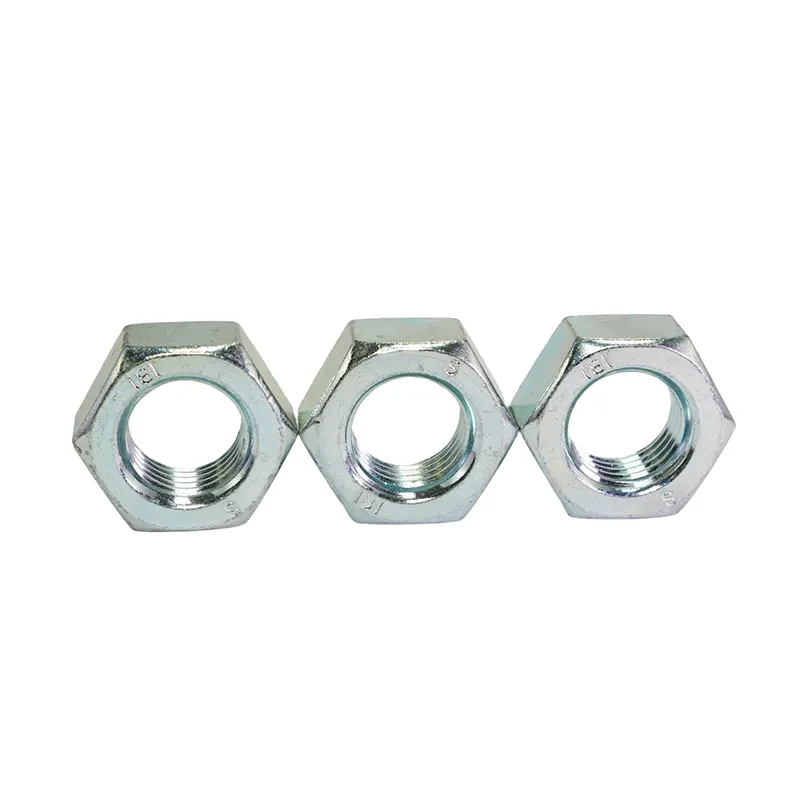

Carbon Steel Hex Nut Zinc Plated
Product: Carbon Steel Hex Nut Zinc Plated
Standard: DIN934
Material: Q195,ZT195,08AL,SWRCH35K/45K etc.
Surface: zinc plated
Specification Range: M1-M48
Property Class: 6,8,10
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Product: Carbon Steel Hex Nut Zinc Plated
Standard: DIN934
Material: Q195,ZT195,08AL,SWRCH35K/45K etc.
Surface: zinc plated
Specification Range: M1-M48
Property Class: 6,8,10
Mechanical Properties
|
Characteristic |
4.8 Class |
8.8 Class |
10.9 Class |
Stainless Steel (304) |
|
Minimum Tensile Strength |
420 MPa |
800 MPa |
1040 MPa |
515 MPa |
|
Minimum Yield Strength |
330 MPa |
640 MPa |
830 MPa |
205 MPa |
|
Hardness Range |
≤20 HRC |
22–32 HRC |
32–39 HRC |
- |
|
Corrosion Resistance |
Basic |
Moderate (with plating) |
Moderate (with plating) |
Excellent |
Core Functions and Application
Mechanical Fastening:
Cooperates with bolts/screws to provide stamping force, preventing connection loosening, and ensuring the integrity of structures and equipment.
Load Transfer:
Uniformly distributes bolt preload, bearing tensile, compressive, and shear force, suitable for both static and dynamic operating conditions.
Corrosion Protection:
The galvanized coating isolates the nut from air, moisture, and corrosive media, significantly extending sere in outdoor/moist environments.
Standardized Interchangeability:
Strictly adheres to DIN934/ISO4032 standards, featuring uniform dimensions and high thread precision to ensure global compatibility and quick.
Core Features
Material & Strength:
Main body made of high-quality carbon steel, commonly available in grades 4/0, with high tensile and yield strength to meet medium to high load requirements.
01
Surface Treatment:
electro-galvanizing (3–12μm) or hot-dip galvanized (40–85μm), capable of withstanding hundreds of hours in neutral salt spray tests, offering excellent rust resistance.
02
Geometry & Precision:
Hexagonal shape ensures uniform force distrn when using a wrench; threads are precision grade 6H for smooth engagement, preventing galling and allowing repeated assembly and disassembly.
03
Specification Coverage:
Full series from M2 to M56, suitable for various scenarios ranging from micro-assembly to heavy-duty structures.
04
Economy:
Carbon steel combined with galvanization offers high cost-effectiveness, balancing performance and cost, making it suitable for large-scale industrial applications.
05
Main Industry Application Scenarios
Construction and Infrastructure; Machinery Manufacturing; Automotive and Transportation; Energy and Power; Metallurgy and Mining; Water Treatment and Ships.
